ball screw diameter lead 1mm 2mm 3mm 4mm
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou |
|---|---|
| Productivity: | 20000 pcs/ month |
| Supply Ability: | 20000 pcs/ month |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | IATF16949 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |
C5 ball screw 1mm, 2mm, 3mm, 4mm lead miniature ball screw for automation
Key features
1. High mechanical efficiency
2. Low noise
3. Accuracy grade of C3, C5
4. Long service life
5. Good synchronism
7. Manufacture by grinding
6. Own factory supply
ball screw 1
ball screw 2

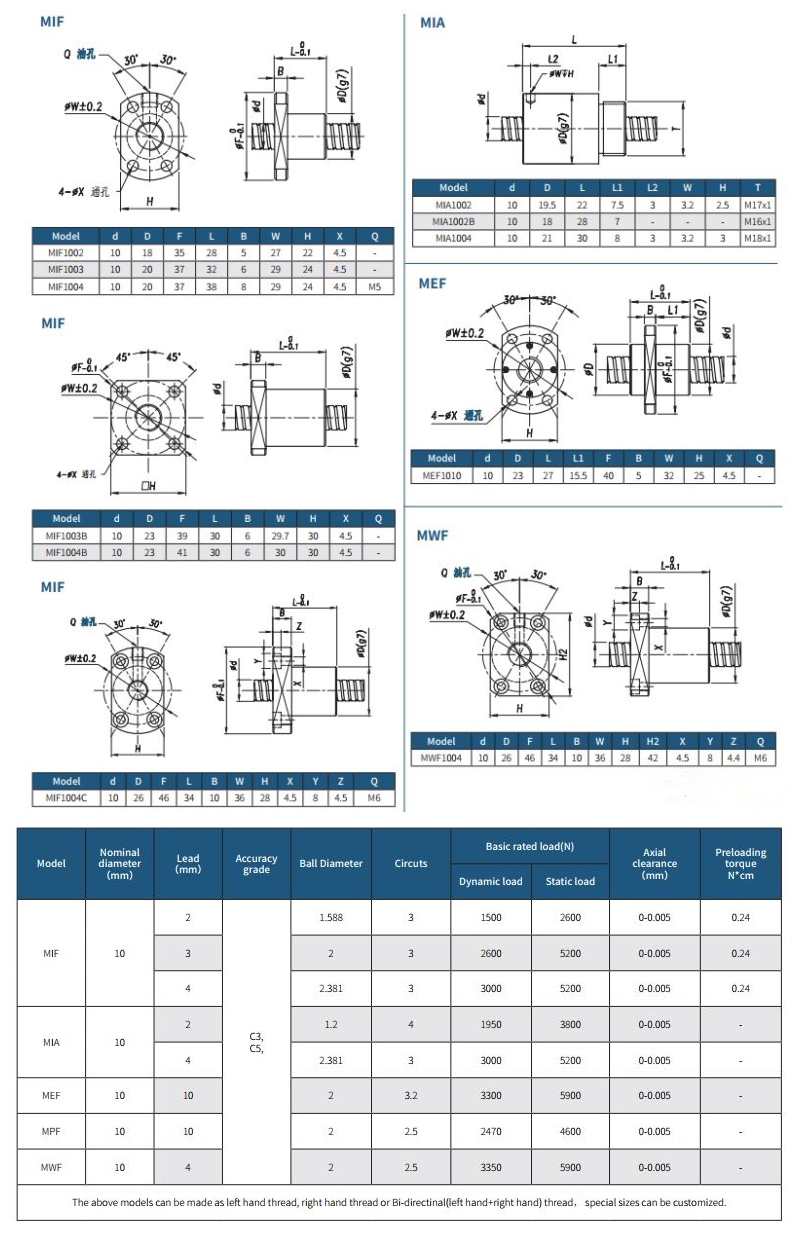

Ball screw specification
The characteristic of ball-screw pair
The ball screw drive system is a rolling screw drive system, in which the ball acts as the rolling medium. There are two drive modes:
(1) transform rotary motion into linear motion. (2) transform linear motion into rotary motion.
Application fields:
Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipments, parking systems, measuring instrument, Automatic computer strip machine, Gantry cranes, Gantry robot, 3D engraving machine ect..
Our product series
1.BALL SCREW:
SFU SERIES,SFE SERIES,M-ISNF SERIES,M-ISNA SERIES,M-CSNF SERIES BALL SCREW
2. LEAD SCREW
3. AKD SUPPORT UNIT
4. LINEAR GUIDEWAY
5.FLEXIBLE AND RIGID COUPLING
6.STEPPER MOTOR
BALL SCREW SERIES
LEAD SCREW SERIES
AKD SUPPORT UNIT
Linear Module
Linear Guideways
Stepper Motor

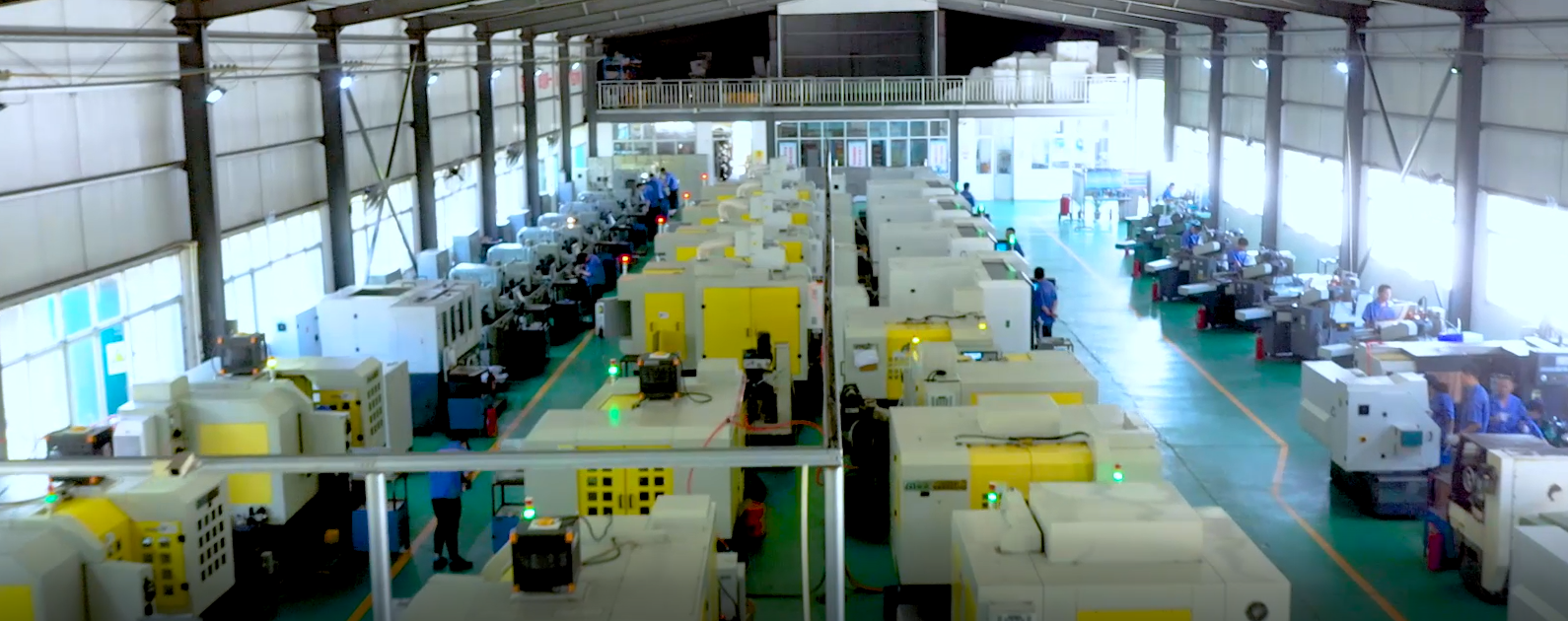

Our Factory Pictures
