Product Description

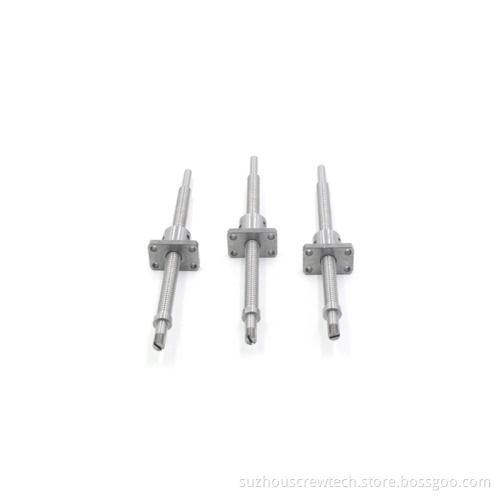

Ball screw 1002 with bi-directional thread and double nut

Ballscrews are mechanical devices that convert torational motion to linear motion with a minimal amount of friction. Ballscrews are used in an array of applications ranging from low accuracy transport guides to high accuracy precision grade screws. They are also used in robots,machine tools and precision assembly devices. Ballscrews comes with high positioning accuracy, high life expectancy,low pollution and high-speed forward and reverse transmission and transforamtion drive characteristics as well. with these advantages,ballscrews has become one of the important mechanical machinery components for precision machinery industry and machinery in high-measurement industry.

Model	d	D	F	L	B	W	H	X	Dynamic load	Static load	Axial clearance(mm)
MIF0401	4	10	20	12	3	15	14	2.9	490	700	0-0.005
MIF0501	5	10	20	12	3	15	14	2.9	530	810	0-0.005
MIF0601	6	12	24	15	3.5	18	16	3.4	580	1000	0-0.005
MIF0602	6	12	24	15	3.5	18	16	3.4	750	1200	0-0.005
MIF0801	8	14	27	16	4	21	18	3.4	780	1650	0-0.005
MIF0802	8	14	27	16	4	21	18	3.4	1500	2600	0-0.005
MIF0802.5	8	16	29	26	4	23	20	3.4	1850	3000	0-0.005
MUF0804	8	16	29	26	4	23	20	3.4	2350	3300	0-0.005

Model	d	D	F	L	B	W	H	X	Q	Dynamic load	Static load	Axial clearance(mm)
MIF1002	10	18	35	28	5	27	22	4.5	-	1500	2600	0-0.005
MIF1003	10	20	37	32	6	29	24	4.5	-	2600	5200	0-0.005
MIF1004	10	20	37	38	8	29	24	4.5	M5	3000	5200	0-0.005

Model	d	D	F	L	B	W	H	X	Dynamic load	Static load	Axial clearance(mm)
MIF1201	12	20	37	28	5	29	24	4.5	780	1600	0-0.005
MIF1202	12	20	37	28	5	29	24	4.5	3000	6000	0-0.005
MIF1203	12	22	39	32	6	31	26	4.5	3650	9900	0-0.005
MIF1204C	12	24	40	28	6	32	25	3.5	4100	9900	0-0.005
MIF1205	12	22	43	38	8	31	26	4.5	6190	8830	0-0.005

Model	d	D	F	L	B	W	H	X	Q	Dynamic load	Static load	Axial clearance(mm)
MIF1402	14	21	40	23	6	31	26	5.5	-	2890	6330	0-0.005
MIF1403	14	24	41	32	6	33	28	5.5	-	2900	4600	0-0.005
MIF1404	14	26	45	33	6	36	28	5.5	-	4500	8600	0-0.005
MIF1405	14	26	46	40	8	36	30	5.5	-	5700	11600	0-0.005
MIF1602	16	25	43	40	10	35	29	5.5	M6	3730	12000	0-0.005
MIF2002	20	30	50	40	10	40	35	5.5	M6	5810	22840

Why choose Screwtech

1. We Screwtech is a professional manufacturer of Ball Screws, Lead Screws. Meanwhile, Distributing Stepper Motor, Linear Guideway, AKD-Support for ball screw, Coupling, Linear Module for more than 10 years.

2. As the unique and professional original factory, we can offer you products of high quality with competitive price and fast delivery.

3. Customized service: Various models are available upon request.
4.We can produce the same size as that from HIWIN, TBI, PMI, and THK.

Features of our mini ball screw
High mechanical efficiency
Zero Axial play
Accuracy grade of C3, C5, C7
Long service life

Smooth running
