Bi-direction ground ball screw for lath machine

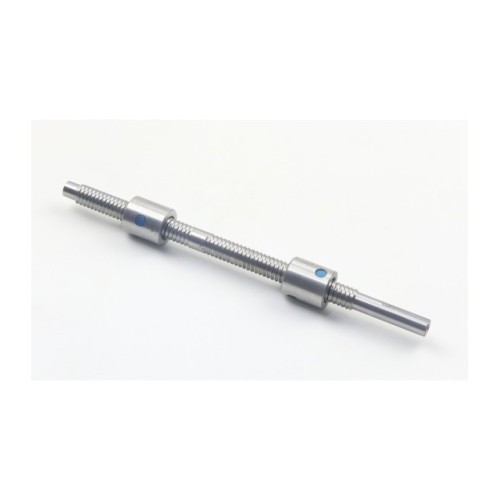

Bi-directional ball screw diameter 12mm pitch 2mm left hand and right hand combination ball screw

The nut of the ball screw can be divided into: elbow type, circulator type and end cap type according to the circulation mode of the steel ball. The characteristics of these three circulation methods.

Ball screw pairs and other rolling friction transmission elements can be considered to work with almost no wear as long as the entry of abrasive particles and chemically active substances is avoided. However, if dirt falls on the raceway, or dirty lubricating oil is used, it will not only prevent the normal operation of the balls, but also increase the wear rapidly.
Usually, a felt ring is used to seal the nut pair. The thickness of the felt ring is 2 to 3 times of the pitch, and the inner hole is made into the shape of a thread, so that it tightly wraps the lead screw and fits into the grooves at both ends of the nut or sleeve. inside the hole. In addition to soft felt, the sealing ring can also be made of oil-resistant rubber or nylon. Since the sealing ring and the screw are in direct contact, the dustproof effect is better, but the frictional resistance torque of the ball screw nut pair is also increased. In order to avoid this frictional resistance torque, a non-contact labyrinth seal made of hard plastic can be used, and the inner hole is made in the opposite shape to the screw thread raceway, and there is a certain gap.

1. We Screwtech is a professional manufacturer of Ball Screws, Lead Screws. Meanwhile, Distributing Stepper Motor, Linear Guideway, AKD-Support for ball screw, Coupling, Linear Module for more than 10 years.

2. As the unique and professional original factory, we can offer you products of high quality with competitive price and fast delivery.

3. Customized service: Various models are available upon request.
4.We can produce the same size as that from HIWIN, TBI, PMI, and THK.

Features of our mini ball screw
※ High mechanical efficiency
※ Zero Axial play
※ Accuracy grade of C3, C5, C7
※ Long service life

※ Smooth running

1.We have business relations with clients both domestic and abroad.

In domestic,our distributor mainly located in Guangdong province,Shandong province,Jiangsu province.
2.With the high quality,good service as well as reasonable price,
We've kept steady and large exporting to Europe, Northern America, Australia,Korea and so on.
