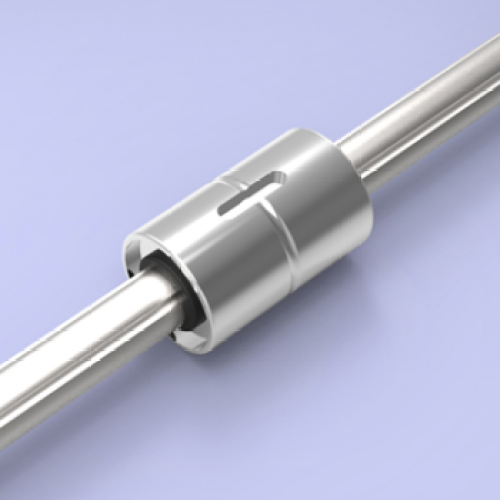

High Quality TBI Ball Spline

$90.00

≥1 Others

Min. Order:: 1 Others

Min. Order:: 1 Others

Transportation:: Ocean, Land, Express, Air

Port:: ShangHai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	SuZhou
Productivity:	2000pcs/month
Supply Ability:	2000pcs/month
Payment Type:	L/C,D/P,T/T,D/A
Incoterm:	FOB,Express Delivery,CFR,CIF,DAF,DES,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU
Certificate:	IATF16949
Transportation:	Ocean,Land,Express,Air
Port:	ShangHai

Product Description

SCREWTECH ball spline can be classified into interchangeable and non- interchangeable types. Ball Spline unique 40° angular contact design which enables the Ball spline delivers high sensitivity and extreme high load carrying capacity. The concept is optimal for the application involve with high speed, vibrates, impacts of loading and precise positioning requirements. Also when the Ball spline is used to function as linear bushing, the Ball spline provides ten times loading capacity than the linear bushing in the like dimensioned but with a compact profile.

Product Application

It is optimal for machines using a combination of rotary and straight motions, such as scholar robot's Z-axis, assembly robot, automatic loader, and machining center's ATC equipment.

Main Features

Linear Ball Splines
Consist of splined shaft and one external cylinders
2 rows of raceways with recirculating balls in 4-point contact used to obtain simple but compact, efficient structure
High rigidity and compact size
High load rating
Low friction and smooth movement
Stable operating accuracy
Suitable for applications which require smooth linear motion and accurate positioning

Characteristics

External diameter: 8mm L1:12mm L2:7.9

Dynamic Load-C: 304 Static Load-Co:382

Our Factory

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

*Feel free to contact us if you have any questions

Packing & Delivery

Packaging Details:
In cartons or Wooden cases upon your requirement

For samples:
we have DHL, FEDEX VIP account, so the shipping freight will be much cheaper after discount.

For bulk order:
we have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.

Port:
Shanghai

Lead Time:
10~30 days
