Anti-backlash lead screw Tr10x2 for CNC wood routing

Product Description

A lead screw is a difficult-to-machine sliding feed screw with a 45° lead angle. Its large lead angle is best suited for fast reciprocating feed at low speeds.

Turning was used for lead screw processing. The process route is: cold drawing→knurling→threading→correction→drilling→cutting→chamfering. It is easy to be deformed at times, and the small screw wheel cannot be produced. For this reason, we have designed a whirlwind milling screw equipment, which not only increases the speed from the experience-recognized 1000r/min to more than 2000r/min, but also completes the milling and knurling at one time. The process route becomes: cold drawing→knurling, wire milling→correction→drilling, cutting→chamfering. Although whirling milling causes large deformation of small-diameter workpieces (smaller deformation of large-diameter workpieces), correction is also easy. The improved process has the following characteristics:

The surface roughness value decreases;

Vibration caused by cutting forces is reduced;

The cumulative error of the pitch of the small-diameter workpiece increases to a certain extent.

Material	Stainless Steel,1405 carbon steel,SUS303,SUS304,Ductile cast iron ,others available upon request
Dimension	Diameter : 10mm, Lead : 20mm, Pitch:3.33mm
Thread Direction	Right hand ( Left hand and bi-directional all available)
Accuracy Grade	7e
Application	Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipment, parking systems, measuring instrument, Automatic computer strip machine, Gantry cranes, Gantry robot, 3D engraving machine etc.
Remark	The marked price in the page is not the authentic transaction value. Because the category of screw’s products belongs to customized products, the actual price should be given corresponding discount by products’ specifications and order quantity.E-mail us for more information :kathy at screwtech.cn

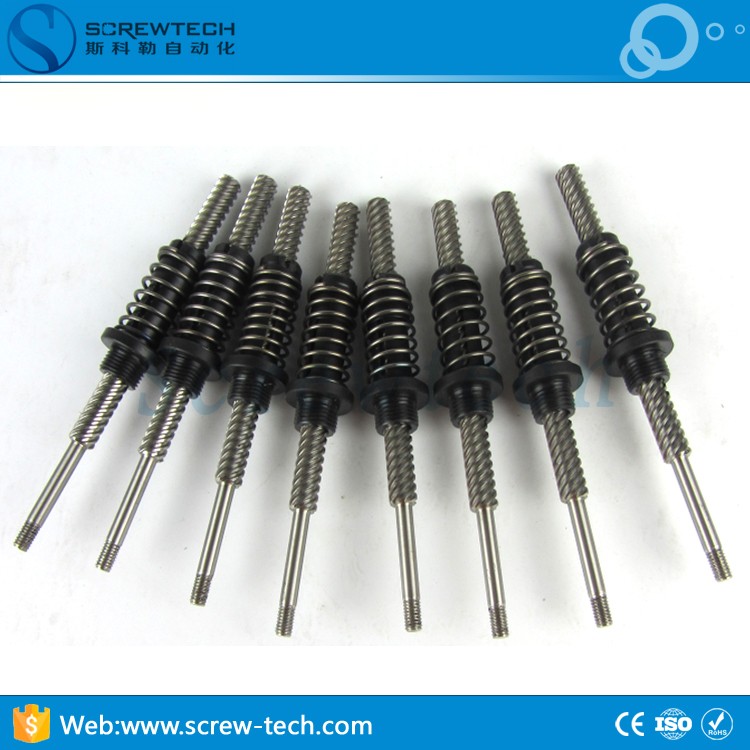

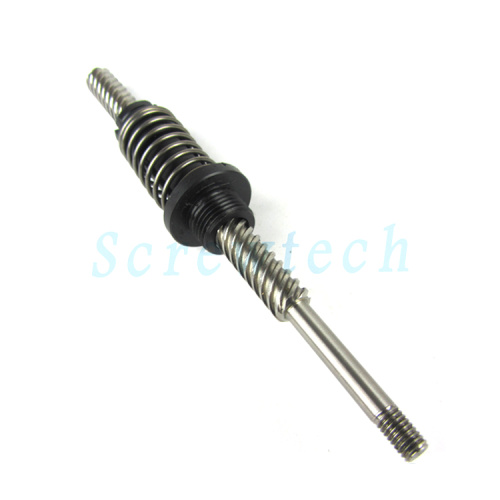

High precision Anti-backlash nut lead screw Tr10x20 pitch 3.33mm for CNC wood routing machine

High precision Anti-backlash nut lead screw Tr10x20 pitch 3.33mm for CNC wood routing machine

High precision Anti-backlash nut lead screw Tr10x20 pitch 3.33mm for CNC wood routing machine

Why choose Screwtech

1. Screwtech designs, manufactures, supplies a complete selection of inch and metric linear mechanical parts and systems to the Linear Motion and Power Transmission Industries.

2 Professional manufacturer
We have the professional production team, high precision production equipments ,focused on precision transmission parts for more than 10 years and have our own brand name SCREWTECH .

3 Competitive Price
Screw Technology is a manufactory which can export directly to customer, so there is no intermediary cost involved.

4 Fast Delivery
We are big manufacturer ,have large amount of stock, we can delivery customer's order just-in-time for small order, 7-15 days for big order.

5 Best After-Sale Service
Screw Technology supply the after-sale service and technical assistance as per customer's requirement and needs. Customers' feedback  are always given quick support.

Lead Screw Parameter

Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipment, parking systems, measuring instrument, Automatic computer strip machine, Gantry cranes, Gantry robot, 3D engraving machine etc.
