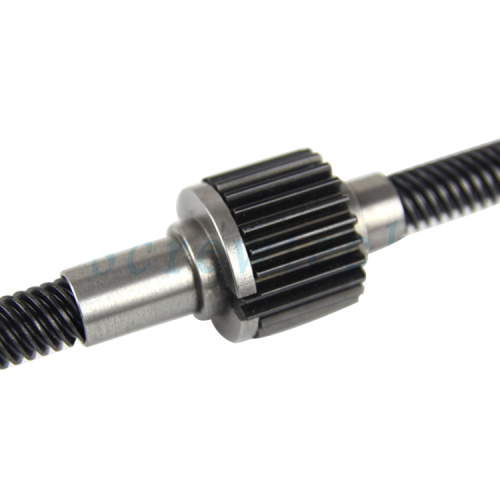

ACME13x13 lead screw for CNC machine

Product Description

A lead screw is a difficult-to-machine sliding feed screw with a 45° lead angle. Its large lead angle is best suited for fast reciprocating feed at low speeds.

Turning was used for lead screw processing. The process route is: cold drawing→knurling→threading→correction→drilling→cutting→chamfering. It is easy to be deformed at times, and the small screw wheel cannot be produced. For this reason, we have designed a whirlwind milling screw equipment, which not only increases the speed from the experience-recognized 1000r/min to more than 2000r/min, but also completes the milling and knurling at one time. The process route becomes: cold drawing→knurling, wire milling→correction→drilling, cutting→chamfering. Although whirling milling causes large deformation of small-diameter workpieces (smaller deformation of large-diameter workpieces), correction is also easy. The improved process has the following characteristics:

The surface roughness value decreases;

Vibration caused by cutting forces is reduced;

The cumulative error of the pitch of the small-diameter workpiece increases to a certain extent.

Material	Stainless Steel,1405 carbon steel,SUS303,SUS304,Ductile cast iron ,others available upon request
Dimension	Diameter : 13mm,Lead : 13mm,Pitch:2.6mm
Thread Direction	Right hand,Left hand and bi-directional all available
Accuracy Grade	7e
Application	Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipment, parking systems, measuring instrument, Automatic computer strip machine, Gantry cranes, Gantry robot, 3D engraving machine etc.
Remark	The marked price in the page is not the authentic transaction value. Because the category of screw’s products belongs to customized products, the actual price should be given corresponding discount by products’ specifications and order quantity.

Why choose Screwtech

1. We Screwtech is a professional manufacturer of Ball Screws,Lead Screws.Meanwhile, Distributing Stepper Motor,Linear Guideway,AKD-Support for ball screw,Coupling,Linear Module for more than 10 years.
2. We are factory:We can offer you products of high quality with competitive price.
3. Customized service:Various models are available upon request.

Related Parameters

 lead screw series

Exhibition

Application

Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipment, parking systems, measuring instrument, Automatic computer strip machine, Gantry cranes, Gantry robot, 3D engraving machine etc.
