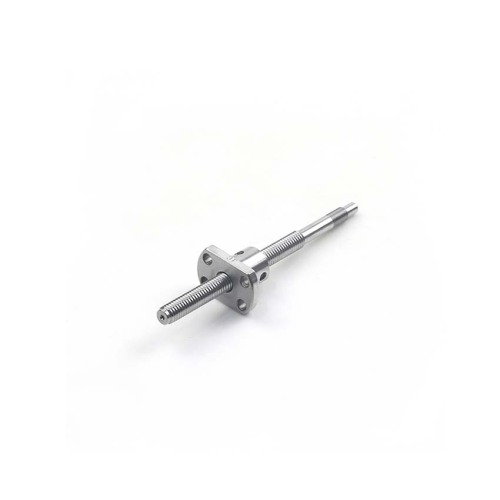

Miniature Ball Screw with 0601 nut for CNC machine

Miniature Ball Screw with 0601 nut for CNC machine

$20.00

≥5 Set/Sets

Min. Order:: 5 Set/Sets

Min. Order:: 5 Set/Sets

Transportation:: Land, Air, Express, Ocean

Port:: SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	40000 sets per year
Payment Type:	L/C,T/T,D/P,D/A
Incoterm:	FOB,CFR,CIF,FAS,FCA,CPT
Transportation:	Land,Air,Express,Ocean
Port:	SHANGHAI

Product Description

6mm Diameter Miniature Ball Screw for CNC machine

This ball screw gives you the option of precise linear positioning. Ballscrews have excellent repeatability and extremely low backlash.

They provide greater accuracy than chain based positioning systems.

1. High durability
The rolling contact parts of the steel balls are all treated by hardening (HRC58 ~ 63) and precision ground.
2. Good synchronization
Due to the smooth motion, responsiveness, no blockage, and no slippage, using several sets of the same ball screw traditional system to drive several identical components or devices at the same time, a good synchronization effect can be obtained.
3. High reliability
Compared with other transmission machinery and hydraulic transmission, the failure rate of the ball screw transmission system is very low, and the maintenance is relatively simple. It only needs general lubrication and dust prevention, and can work without lubrication in special occasions.
4. No backlash and high rigidity
The ball screw drive system adopts the Gothic arch groove shape, which makes the best contact between the steel ball and the groove for easy operation. If the proper preload is added to eliminate the axial clearance, the balls will have better rigidity, reduce the elastic deformation between the balls, the nut and the screw, and achieve higher precision.

Model	d	D	F	L	B	W	H	X	Dynamic load	Static load	Axial clearance(mm)
MIF0401	4	10	20	12	3	15	14	2.9	490	700	0-0.005
MIF0501	5	10	20	12	3	15	14	2.9	530	810	0-0.005
MIF0601	6	12	24	15	3.5	18	16	3.4	580	1000	0-0.005
MIF0602	6	12	24	15	3.5	18	16	3.4	750	1200	0-0.005
MIF0801	8	14	27	16	4	21	18	3.4	780	1650	0-0.005
MIF0802	8	14	27	16	4	21	18	3.4	1500	2600	0-0.005
MIF0802.5	8	16	29	26	4	23	20	3.4	1850	3000	0-0.005
MUF0804	8	16	29	26	4	23	20	3.4	2350	3300	0-0.005

Model	d	D	F	L	B	W	H	X	Q	Dynamic load	Static load	Axial clearance(mm)
MIF1002	10	18	35	28	5	27	22	4.5	-	1500	2600	0-0.005
MIF1003	10	20	37	32	6	29	24	4.5	-	2600	5200	0-0.005
MIF1004	10	20	37	38	8	29	24	4.5	M5	3000	5200	0-0.005

Model	d	D	F	L	B	W	H	X	Dynamic load	Static load	Axial clearance(mm)
MIF1201	12	20	37	28	5	29	24	4.5	780	1600	0-0.005
MIF1202	12	20	37	28	5	29	24	4.5	3000	6000	0-0.005
MIF1203	12	22	39	32	6	31	26	4.5	3650	9900	0-0.005
MIF1204C	12	24	40	28	6	32	25	3.5	4100	9900	0-0.005
MIF1205	12	22	43	38	8	31	26	4.5	6190	8830	0-0.005

Model	d	D	F	L	B	W	H	X	Q	Dynamic load	Static load	Axial clearance(mm)
MIF1402	14	21	40	23	6	31	26	5.5	-	2890	6330	0-0.005
MIF1403	14	24	41	32	6	33	28	5.5	-	2900	4600	0-0.005
MIF1404	14	26	45	33	6	36	28	5.5	-	4500	8600	0-0.005
MIF1405	14	26	46	40	8	36	30	5.5	-	5700	11600	0-0.005
MIF1602	16	25	43	40	10	35	29	5.5	M6	3730	12000	0-0.005
MIF2002	20	30	50	40	10	40	35	5.5	M6	5810	22840

Why choose Screwtech

1. We Screwtech is a professional manufacturer of Ball Screws, Lead Screws. Meanwhile, Distributing Stepper Motor, Linear Guideway, AKD-Support for ball screw, Coupling, Linear Module for more than 10 years.

2. As the unique and professional original factory, we can offer you products of high quality with competitive price and fast delivery.

3. Customized service: Various models are available upon request.
4.We can produce the same size as that from HIWIN, TBI, PMI, and THK.

Features of our mini ball screw
High mechanical efficiency
Zero Axial play
Accuracy grade of C3, C5, C7
Long service life

Smooth running
