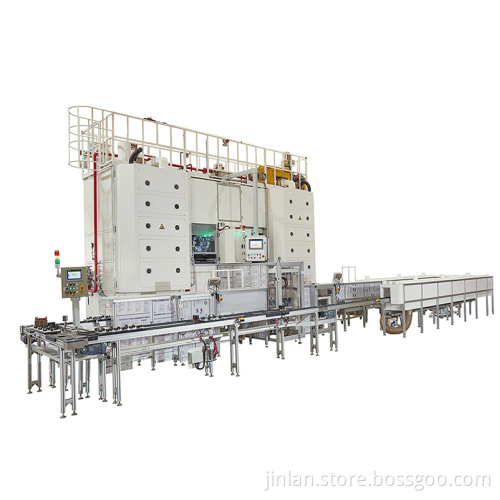

EV Motor Stator Trickling Line
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou,China |
|---|---|
| Productivity: | 20000-30000pcs per year |
| Supply Ability: | 10 Sets per year |
| Payment Type: | T/T |
| Incoterm: | FOB,EXW,DDP |
| Certificate: | ISO 9001; CE certificate |
| HS Code: | 8419899090 |
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI |
Product Introduction
Resin will be trickling on copper coil of the stator before solidified and reweighed by the scale, to achieve the effect of Electrical Motor Stator Impregnation on the Ev Drive Motor Stator Varnishing Machine. The Stator Resin Dispensing Solution is composed of servo trickling modules, and data traceability,which help avoid contamination on the stack. It has advantages of both fast model changeover and data traceability. The cycle time and automation of the Drive Motor Stator Varnishing Line can be customized to meet different production request.This solution is widely adopted in the New Energy Vehicle industry. The Stator Varnishing Machine is featured with fast model changeover, with servo nozzles which can fit for different models.
Product Features
automatic nozzle adjustment,flexible model changeover, temperature zone control, data traceability system, and resin quantitative control
Process Parameters
Applicable product model
Flat copper wire/round copper wire
/
load/unload system
manual/robot
Can be connected with the production lines both in front and at the back
Product clamping
Inner supporting/external clamping
To be designed according to the product model
Output accuracy
1%-10%
Multiple configurations, to be designed based on customer specification
Single machine cycle time
≥45s
Depending on product model
Varnish type
Single component/two- component
Varnish temp control
10-50℃
Varnish temp will be protected in heating and cooling working system
Flow rate monitor
pressure/flow rate monitor
Anti-clogging/fail-safe monitor
