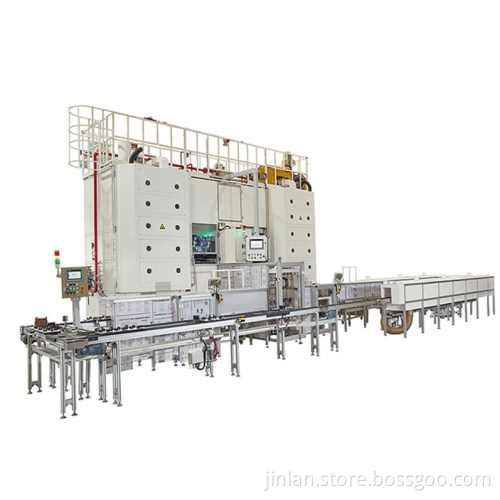

Electrical Motor Stator Varnishing Line
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou,China |
|---|---|
| Productivity: | 20-40 sets per year |
| Supply Ability: | 10 Sets per year |
| Payment Type: | T/T |
| Incoterm: | FOB,EXW,DDP |
| Certificate: | ISO 9001; CE certificate |
| HS Code: | 8419899090 |
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI |
Product Introduction
The copper coil of the electrical motor's stator will be varnished after preheated. Then the stator will be unloaded before cured and reweighing to achieve insulation effect. The servo trickling module, high-accuracy scale and data traceability help avoid stains on the stack. It boasts of fast model transfer with multiple fixture designs and automatic nozzle positioning.
Product Features
- automatic nozzle positioning;
- flexible model changeover
- temperature zone control;
- data traceability system;
- resin quantitative control
Process Parameters
Applicable product model
Flat copper wire/round copper wire
/
load/unload system
manual/robot
Can be connected with the production lines both in front and at the back
Product clamping
Inner supporting/external clamping
To be designed according to the product model
Output accuracy
1%-10%
Multiple configurations, to be designed based on customer specification
Single machine cycle time
≥45s
Depending on product model
Varnish type
Single component/two- component
Varnish temp control
10-50℃
Varnish temp will be protected in heating and cooling working system
Flow rate monitor
pressure/flow rate monitor
Anti-clogging/fail-safe monitor
As global top service provider for vehicle parts industry, JINLAN has integrated advantageous resources and served our customers for about 15 years with complete smart solutions for automotive generator and starter, especially new energy vehicle motor industries etc., with the main products of Stator Varnishing Machine; Rotor Assembly Line; Stator Test Machine;Charge Cable Assembly line;EPS Power Head Test Line, etc.
