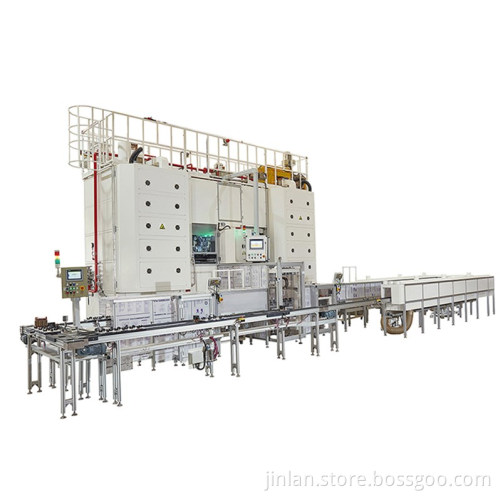

EV Motor Stator Impregnation Line
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou,China |
|---|---|
| Productivity: | 20-40 sets per year |
| Supply Ability: | 10 Sets per year |
| Payment Type: | T/T |
| Incoterm: | FOB,EXW,DDP |
| Certificate: | ISO 9001; CE certificate |
| HS Code: | 8419899090 |
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI |
Product Introduction
The copper coil of the stator will be trickled by servo nozzles after preheated. Then the stator will be unloaded before gelated and cured to achieve insulation effect. The servo trickling module, high-accuracy scale and data traceability help avoid stains on the stack. It boasts of fast model transfer with multiple fixture designs and automatic nozzle positioning.
Product Features
- automatic nozzle positioning;
- flexible model changeover
- temperature zone control;
- data traceability system;
- resin quantitative control
Process Parameters
Applicable product model
Flat copper wire/round copper wire
/
load/unload system
manual/robot
Can be connected with the production lines both in front and at the back
Product clamping
Inner supporting/external clamping
To be designed according to the product model
Output accuracy
1%-10%
Multiple configurations, to be designed based on customer specification
Single machine cycle time
≥45s
Depending on product model
Varnish type
Single component/two- component
Varnish temp control
10-50℃
Varnish temp will be protected in heating and cooling working system
Flow rate monitor
pressure/flow rate monitor
Anti-clogging/fail-safe monitor
As global top service provider for vehicle parts solution, JINLAN has served our customers with complete smart solutions for generator and starter,new energy vehicle motor and car motor industries. Our main products include Stator Varnishing Machine; Rotor Assembly Line; Stator Test Machine;Charge Cable Assembly line;EPS Power Head Test Line, etc.
