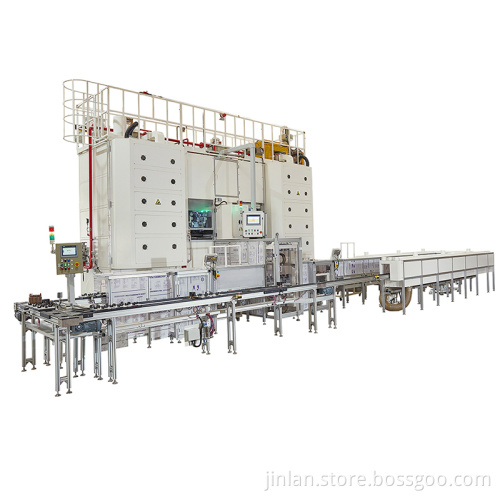

Automatic Stator Varnishing Line
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou,China |
|---|---|
| Productivity: | 20 SETS PER YEAR |
| Supply Ability: | 10 Sets per year |
| Payment Type: | T/T |
| Incoterm: | FOB,EXW,DDP |
| Certificate: | ISO 9001; CE certificate |
| HS Code: | 8419899090 |
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI |
Product Introduction
Resin will be trickling on copper coil of the stator to achieve the impregnation effect before solidified. It boasts of fast model changeover, high varnishing accuracy so that there is little contamination on the stack. The servo trickling module, high-accuracy scale and data traceability are well adopted for quality control. The cycle time and varnishing accuracy can be customized to meet different production request.
Product Features
automatic nozzle adjustment,flexible model changeover, temperature zone control, data traceability system, and resin quantitative control
Process Parameters
Applicable product model
Flat copper wire/round copper wire
/
load/unload system
manual/robot
Can be connected with the production lines both in front and at the back
Product clamping
Inner supporting/external clamping
To be designed according to the product model
Output accuracy
1%-10%
Multiple configurations, to be designed based on customer specification
Single machine cycle time
≥45s
Depending on product model
Varnish type
Single component/two- component
Varnish temp control
10-50℃
Varnish temp will be protected in heating and cooling working system
Flow rate monitor
pressure/flow rate monitor
Anti-clogging/fail-safe monitor
We serves the industry with three main technologies, automatic assembly, professional test and trickling insulation. The main solutions we offer includes stator varnishing machine, stator lacing machine,stator leadwire finishing machine,stator test machine;rotor dipping impregnation line,rotor assembly line and electrical brushholder assembly line for the generator industry; drive shaft assembly line, ORC assembly line,electromagnetic switch assembly line and the starter general assembly line for starter industry; car seat general assembly line,automatic steel wire cutting machine for automotive seat industry; EPS power head test line for steering system industry; charge cable assembly line, stator impregnation line, stator epoxy coating machine and EV drive motor general assembly line for EV motor industry.
