Customized Cycle Time Stator Impregnation Line
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | SUZHOU,CHINA |
|---|---|
| Productivity: | 20000-30000pcs per year |
| Supply Ability: | 20 SETS PER YEAR |
| Payment Type: | T/T |
| Incoterm: | FOB,EXW |
| Certificate: | ISO 9001;CE certificate |
| HS Code: | 8419899090 |
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI |
Product Introduction
Used for varnishing treatment the stator copper coils, widely applied for different models. It boasts of precise resin quantity control and automatic nozzle positioning. The production line is composed of resin mixing system, preheating oven, servo trickling system, gelling, curing, and cooling conveyor, HMI, etc.

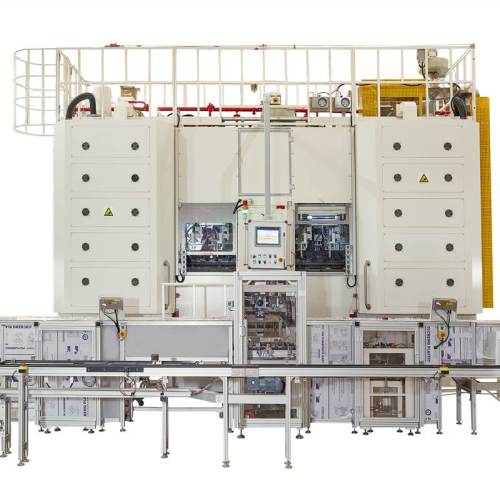

Product Pictures
Product Features
-
automatic nozzle positioning;
-
flexible product model changeover;
-
temperature zone control;
-
data traceability system;
-
varnishi quantitative control
Process Parameters
| Product models | Flat copper wire/round copper wire | / |
| load/unload system | manual/robot | Can be connected with the production lines both in front and at the back |
| Product clamping | Inner supporting/external clamping | To be designed according to the product models |
| Output accuracy | 1%-10% | Multiple configurations, to be designed based on customer's technical specifications |
| Single machine cycle time | ≥45s | Depending on product model |
| Varnish models | Single component/two- component | |
| Varnish temp control | 10-50℃ | Varnish temp will be protected in heating and cooling working system |
| Flow rate monitoring | pressure/flow rate monitor | Anti-clogging/fail-safe monitor |
JINLAN serves the automobile industry with three key technologies, trickling impregnation, automatic assembly, and professional test. The main products which we serve the industry with include stator varnishing machine, rotor assembly line,Stator Test Machine,EPS power head test line, Charge Cable Assembly line, EPS Power Head Test Line and Car Seat Assembly Line. Our products are widely used in industries of generator,starter,car seat,steering system and new energy vehicle.
