Twist drill is the most widely used hole machining tool. The usual diameter range is 0.25 to 80 mm. Circular Drill Bit is mainly composed of bit working part and shank. The working part has two spiral grooves, shaped like a twist, hence the name. In order to reduce the friction between the guide part and the hole wall when drilling, twist drill from the drill tip to the handle direction gradually reduce the diameter of the inverted cone. The screw Angle of twist drill mainly affects the size of cutting edge Angle, edge edge strength and chip removal performance, which is usually 25° ~ 32°. Spiral grooves can be processed by milling, grinding, hot rolling or hot extrusion, and the front end of the drill bit forms a cutting part after grinding.

Description：

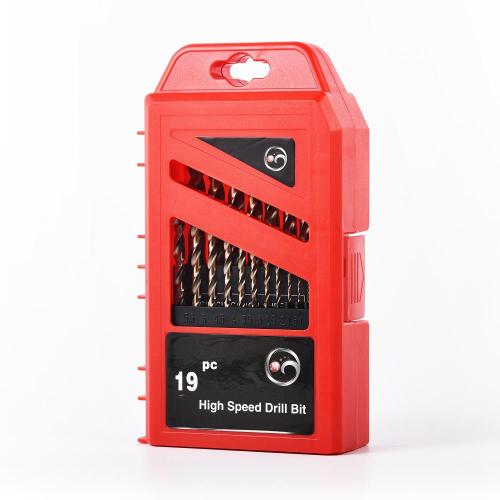

Product Photo：
