1.5mm Double-edged end milling cutter for key machine

1.5mm Double-edged end milling cutter for key machine

$6.90

1-49 Piece/Pieces
$3.00

≥50 Piece/Pieces

Transportation:: Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	3000 pieces per day
Supply Ability:	80000 pieces per month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CFR,FOB,CFR
Certificate:	iso
Transportation:	Land,Air
Port:	Shanghai

Product Description

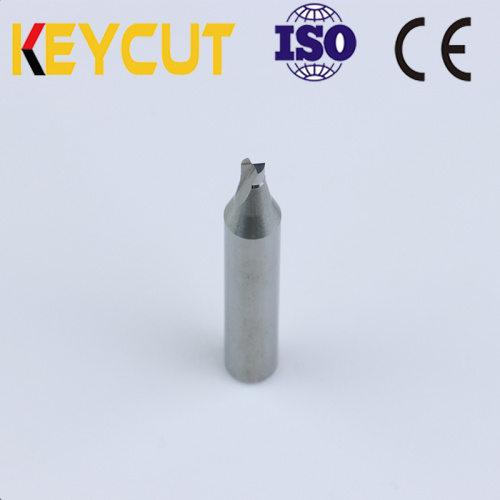

1.5mm Double-edged end milling cutter for various key cutting machine

Key Cutter Carbide Cutter

According to the demand: manual key machine profiling milling the inner groove or milling the outer groove (sharp and smoother than a single blade, and more resistant to breaking than a three blade)

3. Suitable speed: 3500~10000RPM

4. Suitable for processing materials: civil keys, brass keys

5. Suitable processing methods: used to process multi-track milling grooves, inner grooves, and outer grooves,

Specification design: shank diameter 6mm, blade diameter 0.8-3.0mm [all orders can be produced in this range], total length 40mm.

Blade diameter range d (mm) Blade length L (mm) Total length L (mm) Shank diameter D (mm) Processing depth

0.8≤d＜1.2 1.2 40 6 0.8-1.0

1.2≤d＜1.5 1.5 40 6 0.8-1.2

1.5≤d＜2.0 1.8 40 6 0.8-1.5

2.0≤d≤2.5 2.2 40 6 0.8-1.8

2.5＜d≤3.0 2.2 40 6 0.8-1.8

Advantage:

a) Effect: On the basis of breaking resistance above 8.5, the sharpness of the tool is increased to about 9, and the key blank is processed without burrs and is smooth;

b) Design service life: No less than 50 ordinary multi-track keys can be processed by tools with a blade diameter of less than 2.0, 31# blanks can be processed by tools with a blade diameter of 2.0 and above, and 100 HU66 tracks.
