OEM precision progressive sheet metal fabricating , stamping die with cheap price

$5000.00 - $10000.00/Set/Sets

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Optimize of mold cost and best use is our priority.

We accept: 2D--dxf & dwg & pdf; 3D--UG files, like STP, IGS, X_T., Prt.

Details:

Specifications

Mold 2D + 3D drawing Design:

Product name	OEM precision progressive sheet metal fabricating , stamping die with cheap price
Tooling steel material	Depend on product, we help customer to choose the suitable material. Commonly used material as below: Carbide(CD650,V3,KD20), ASP-23, ASP-60, S55C---45#55, SKD11.
Steel of mold base	Depend on product, we help customer to choose the suitable material. Commonly use S45C.
Mould Standard components	HASCO, MISUMI, Meusburger, DME, etc.
Die concept	2-Plate Die, 3-Plate Die, Module Die
Mold life	Depends on the steel material and your requests. Commonly used: 50 Million to 300 Million Times
Stamping Product	PC Terminal, Power terminal, Press-Fit Terminal, Lead frame, SIM Spring, Connector Shield, Battery, Metal USB shell, custom stamping.
Surface finish	Depends on your requirements. Commonly: Texture Hatching, EDM Hatching, plating, Polishing, Diamoud Polishing, Mirror Polishing and so on.
Delivery time	Depends on the size and structure. Normally: 25-30 working days after 50% down payment.
Terms of payment	T/T, L/C, Western Union, D/A, D/P, Paypal.

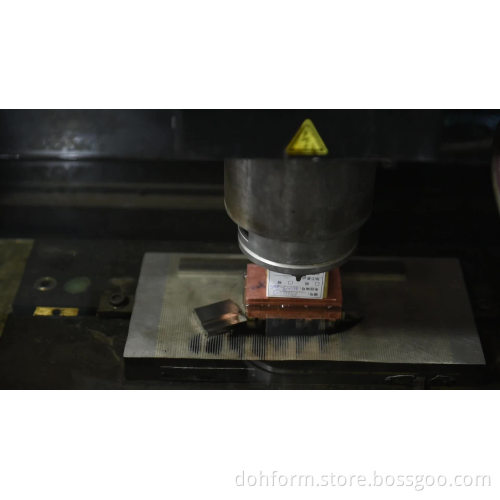

Machine center	High speed CNC, Wire cutting, EDM, Grinder, Great Grinder, CNC milling, Drilling and milling, Stamping punching machines, injection machine, Inspection.
R&D	1. Drawing design and making for products and mold; 2. Mold drawing revising; 3. Production time and quality control in each machining process. (Our own EPR system).
Production	Pilot Run production and molding production can be provided.
