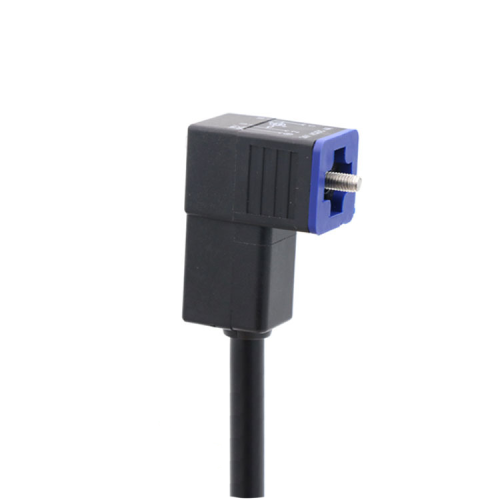

8mm DIN43650 Valve Plug C Form
Among the three types of valve connector, the C-type valve plug connector has the smallest size. Its head is square in shape, which is similar to a Form A Valve Plug. Due to their small size, they are also sometimes referred to as "submicron valve connectors".

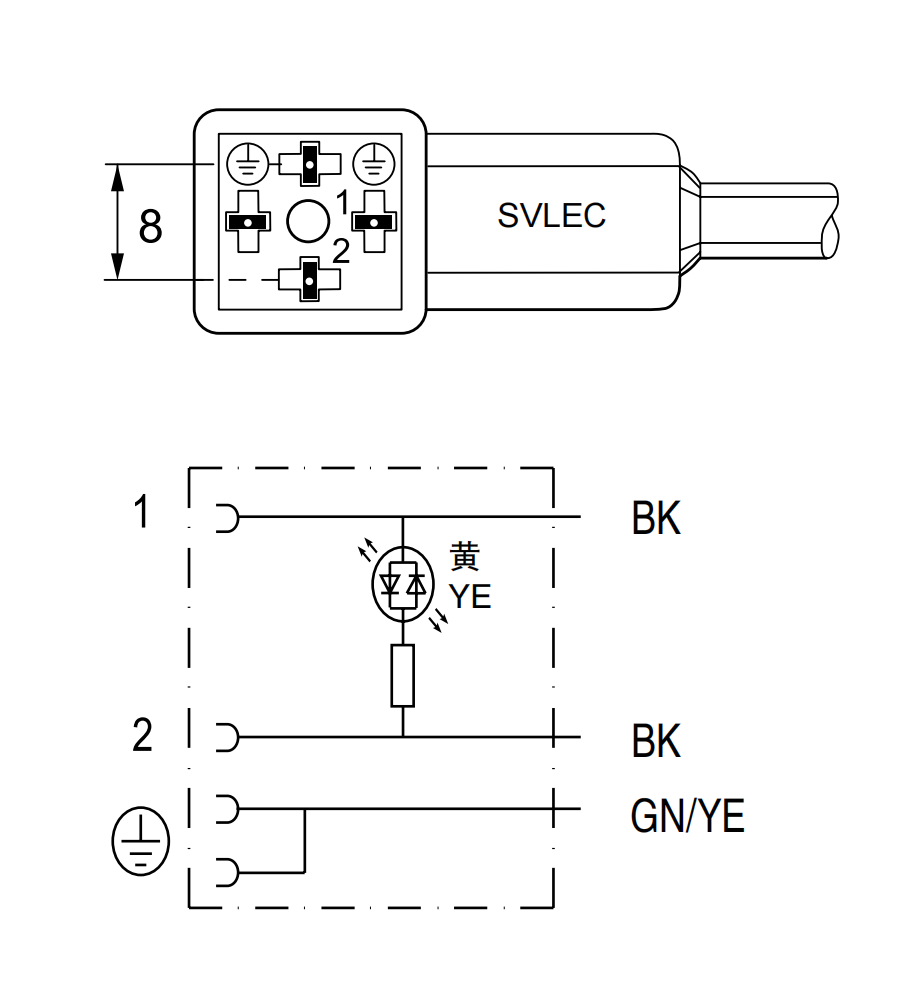

These connectors are available in two different tab pin spacings:
Pin spacing between pins 1 and 2 is 8 mm (EN standard)
9.4 mm pin spacing between pins 1 and 2 (industry standard)
Valve plug C form are manufactured to EN 175301-803-C or industry standards, with a choice of 2 poles or 3 poles + ground.
Name:
8mm Valve plug C form
Voltage:
24V AC/DC
LED:
Yes
Cable type:
PVC/PUR
Cable length:
1.5m/3m/5m/Customized
Pin spacing:
8mm
