Product Description
Product Description

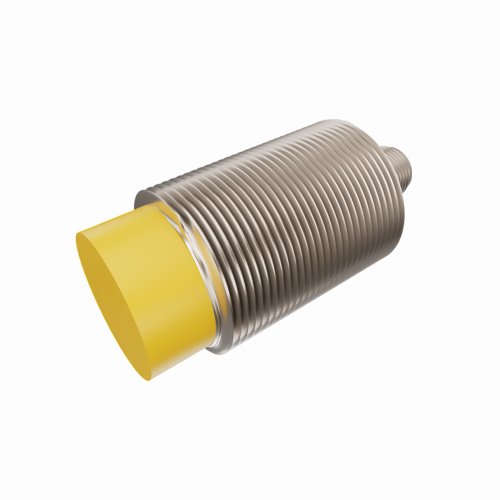

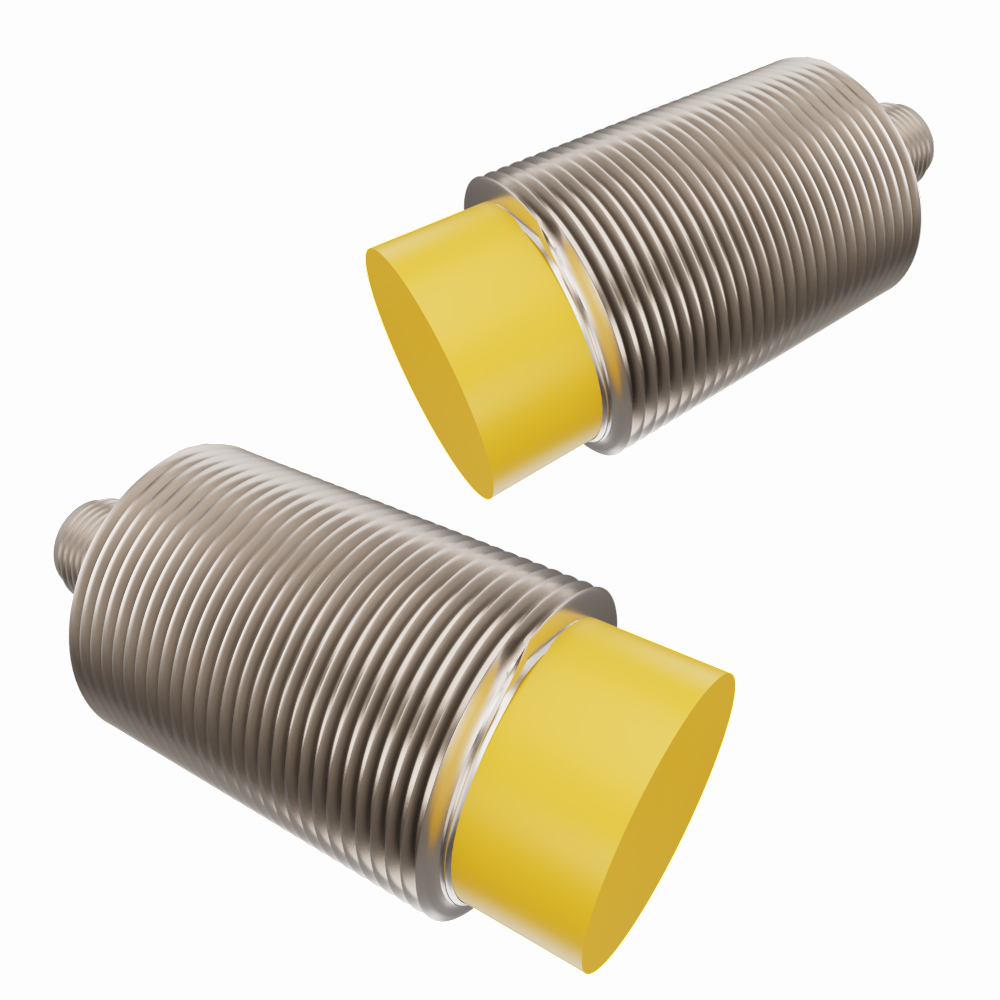

M30 non-flush high-temperature Sensors may be offered by different manufacturers and have different technical parameters such as temperature range, accuracy, response time, etc. The selection should be based on the actual application requirements and environmental conditions. The sensing range of m30 high-temperature non-flush sensor is 15mm, and the sensing range of the m30 high-temperature flush sensor is 10mm. We also manufacture m18 and m12 high-temperature sensors. If you would like to find out more, please click on the Sensor and Actuator category. You can also download our product catalog to learn more about the product parameters. Field Wireable Connector, I/O System, Accessories, etc. are on sale.
| Install form | Flush mounted | Non-flush mounted |
| Detection distance | 2mm | 4mm |
| Type | ||
| DC 2 WIRE NO | DGC12FDO0203 | DGC12NDO0403 |
| AC 2 WIRE NO | DGC12FAO0203 | DGC12NAO0403 |
| AC 2 WIRE NC | DGC12FAC0203 | DGC12NAC0403 |
| DC 3 WIRE NPN NO | DGC12FNO0203 | DGC12NNO0403 |
| DC 3 WIRE NPN NC | DGC12FNC0203 | DGC12NNC0403 |
| DC 3 WIRE PNP NO | DGC12FPO0203 | DGC12NPO0403 |
| DC 3 WIRE PNP NC | DGC12FNC0203 | DGC12NPC0403 |
| DC 4 WIRE NPN NO+NC | DGC12FNF0203 | DGC12NNF0403 |
| DC 4 WIRE PNP NO+NC | DGC12FPF0203 | DGC12NPF0403 |
| Technical data | ||
| Supply voltage | DC:10-30V,AC:20-250V | |
| Combined current | DC:200mA,AC:400mA | |
| Frequency(Hz) | DC:1000.AC:50 | DC:800,AC:40 |
| Protection level | IP67 | |
| Ambient temperature | +150℃ | |
| Short circuit protection | YES | |
| Polarity protection | YES | |
| Shell material | CuZn-Cr | |
