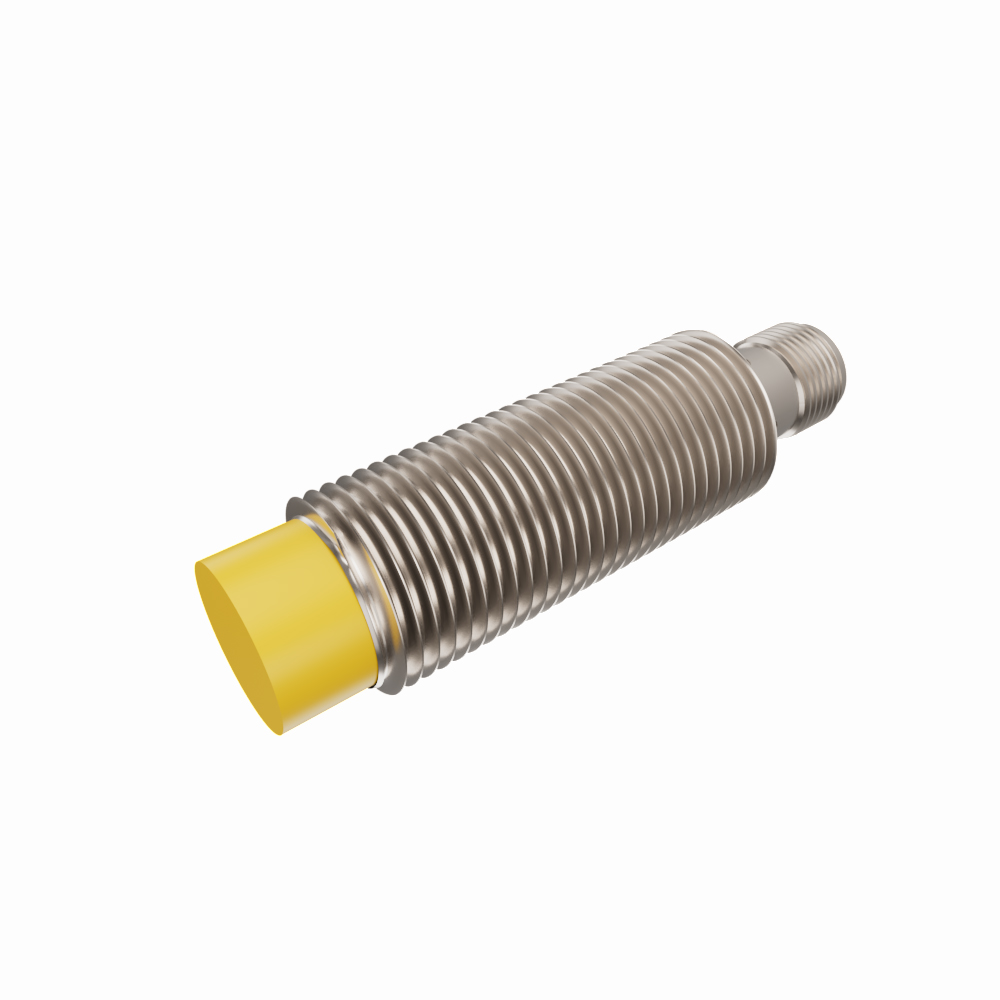

M18 Non-flush mounted High Temperature Inductive Sensor

M18 Non-flush mounted High Temperature Inductive Sensor

Get Latest Price

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	1000pcs
Certificate:	ce

Product Description

We produce two types of high-temperature proximity sensors: M12, M18, and M30, flush mounted and non-flush mounted. Our Sensors can be used with IO-Link Masters, Ehternet Switches, Indicators, Valve Terminals, IP20 IO-Link Slaves, SV-Link Slaves, RFID System, and more. If you want to learn more about our high-temperature proximity sensors, please click on our Sensor and Actuator category. Alternatively, you can download our product catalog. You can browse more product parameters. Svlec is at your service.

Install form	Flush mounted	Non-flush mounted
Detection distance	5mm	8mm
Type
DC-2 WIRE NO	DGC18FDO0503	DGC18NDO0803
AC-2 WIRE NO	DGC18FAO0503	DGC18NAO0803
AC-2 WIRE NC	DGC18FDC0503	DGC18NCO0803
DC-3 WIRE NPN NO	DGC18FNO0503	DGC18NNO0803
DC-3 WIRE NPN NC	DGC18FNC0503	DGC18NNC0803
DC-3 WIRE PNP NO	DGC18FPO0503	DGC18NPO0803
DC-3 WIRE PNP NC	DGC18FPC0503	DGC18NPC0803
DC-4 WIRE NPN NO+NC	DGC18FNF0503	DGC18NNF0803
DC-4 WIRE PNP NO+NC	DGC18FPF0503	DGC18NPF0803

Technique data
Supply voltage	DC:10-30V,AC:20-250V
Combined current	DC:200mA,AC:400mA
Frequency(Hz)	DC:800,AC:40	DC:600,AC:35
Protection level	IP67
Ambient temperature	+150℃
Short circuit protection	YES
Polarity protection	YES
Shell material	CuZn-Cr

High Temperature Inductive Sensor M18 8MM
