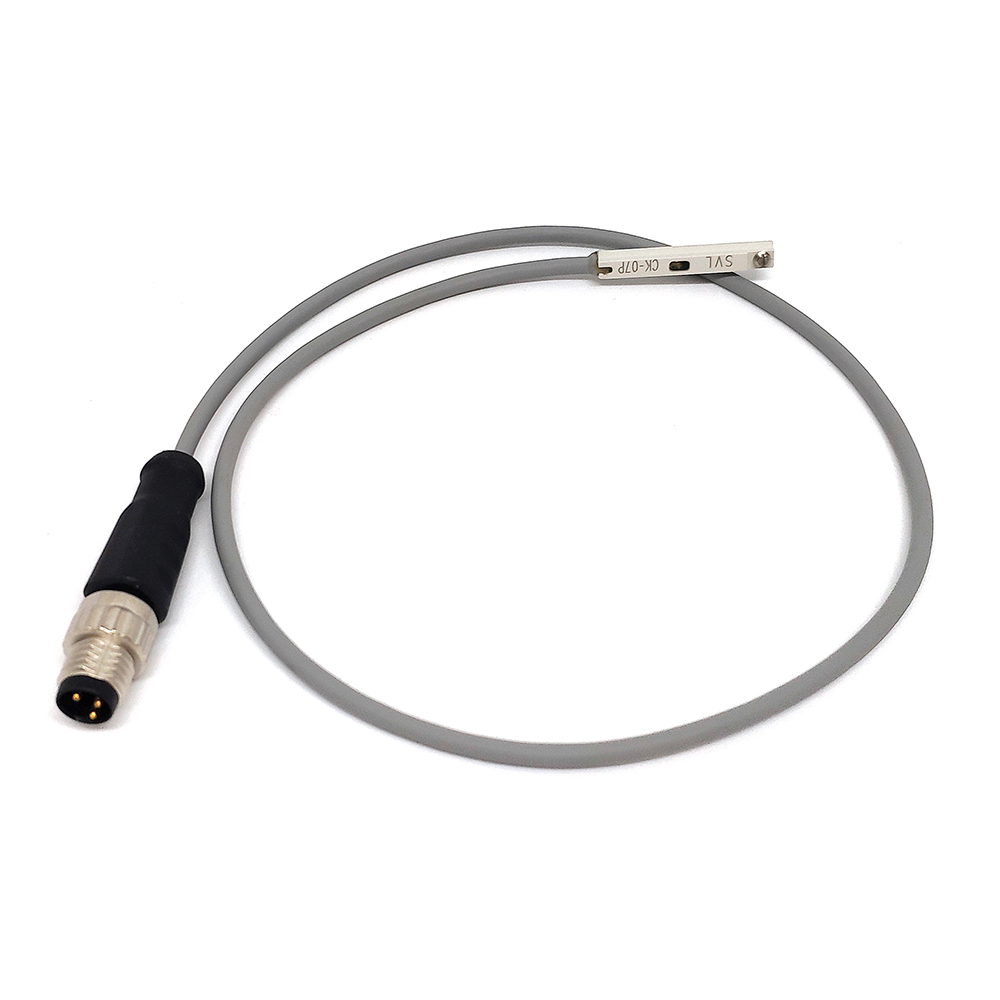

CK-07 2wire 3wire Cylinder Magnetic Sensor
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 1000pcs |
| Certificate: | CE |
Magnetic switches Sensors work through the principle of electromagnetic induction and can detect the approach or departure of target objects without physical contact. This makes them very suitable for use in environments that require frequent movement or in corrosive, high-temperature, or harsh conditions. Due to its high reliability and flexibility, magnetic switches are widely used in various fields such as automated production lines, robotics technology, vehicle control, medical equipment, aerospace, and more. The specific product features and parameters may vary, so when choosing, you should refer to downloading our product catalog. The CK-07 series comes with M8 connector and M12 connector, 2-wire and 3-wire types. Connectors, Sensor and Actuator, I/O System, etc. can all be used in conjunction in the field of industrial automation. For details, please visit our company's official website.
| wiring method | 2-wire type | 3-wire type |
| switching logic | solid state output, normally open | |
| operating voltage | 10-28v dc | 5-3v dc |
| switching current | 4-40mA max. | 200mA max. |
| contact rating | 1.5W max. | 6W max. |
| current consumption | - | 8mA@24V DC max. |
| voltage drop | 3.5V max. | 1V@200mA MAX. |
| Leakage current | 1mA max. | 0.01mA max. |
| indicator | RED LED | Green LED |
| Cable | ø2.8,3C,PUR | |
| operating frequency | 1000Hz | |
| magnet requirement | 40 Gauss | |
| temperature range | -10℃-70℃ | |
| Shock | 50G | |
| Vibration | 9G | |
| Enclosure classification | IEC 60529 IP67 | |
| protection circuit | 4 | 2,3,4 |
