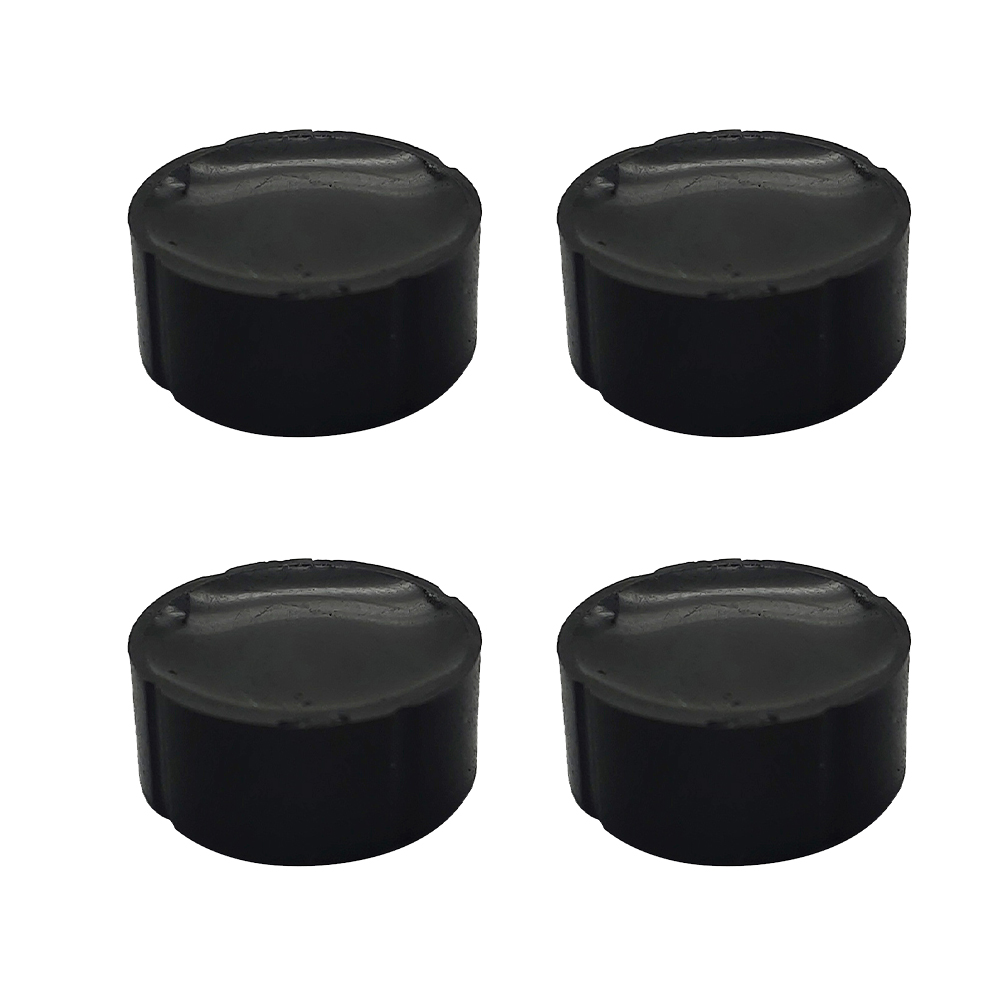

10X4.5mm round High frequency LF data carriers
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 10000pcs |
| Certificate: | CE |
10X4.5mm high-frequency precision code carrier usually refers to a carrier used for miniaturized, high-precision storage and transmission of data in high-frequency communication systems. These types of code carriers play an important role in electronic and communication technology. Due to its small size and high frequency, it can achieve higher data transmission rates in limited space, thereby improving the overall efficiency and capacity of communication systems. We do not produce 320bytes and 2000bytes 10X4.5mm High-frequency precision code carriers. Our products can be used in conjunction with power supply, Valve Terminal, Distribution System, and I/O System. If you want to learn more, please click on our official website homepage.
| Product model | FD-HTM100M-320 | FD-HTM100M-2K |
| Working frequency | 13.56Mhz | |
| An agreement | ISO 15693 | |
| Read distance | 0-12mm | |
| User memory | 320bytes | 2000bytes |
| Memory type | EEPROM | FRAM |
| Wipe the number | 100,000 times | 100,000 times |
| Data retention time | 10 years | |
| Dimension | Ø10X4.5mm | |
| Shell material | PBT | |
| Fixed way | Adhesive | |
| Protection | IP68 | |
| Working temperature | -40℃ to +70℃ | |
| Storage temperature | -40℃ to +85℃ | |
| Resistance of metal | Can be embedded in metal flush installation | |
