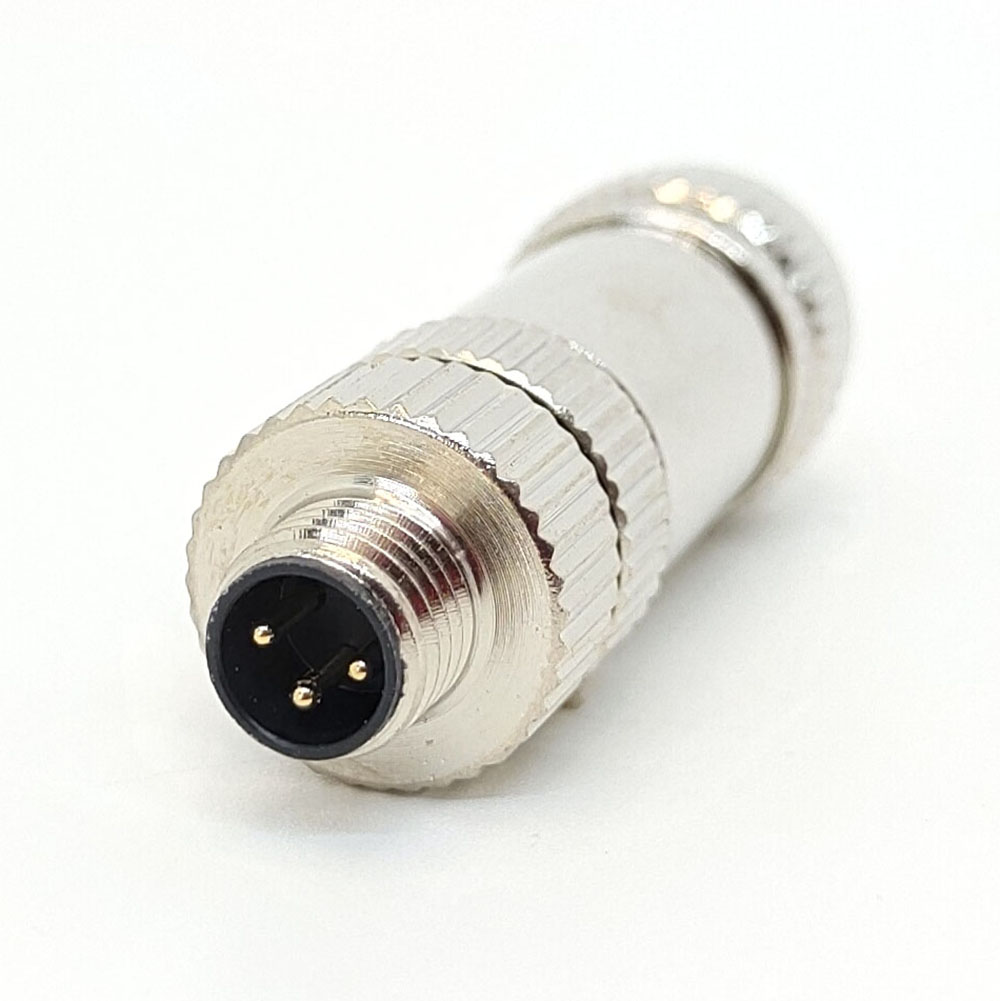

M8 Shield connector 3pin screw terminals for cable
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1000PCS |
| Certificate: | CE |
We produce circular Connectors with plastic and metal shells, including M8 connector, M12 connector, M23 connector, 7/8" connector, Y/T Connector, etc. Among them, the M8 straight connector with the metal shell has 3 pins and 4pin. The M12 straight and 90-degree connectors with metal shells have 4-pin, 5-pin, and 8-pin. The shell material of metal circular connectors is generally zinc alloy or stainless steel, which has the characteristics of high strength, corrosion resistance, and wear resistance. Connectors can be used to connect various parts of robots, such as motors, Sensor and Actuator. They can be used to connect controllers（such as I/O Systems）and PLCs to connect them with various devices and machines. They can also be used to connect Connection Cable and Servo Cable to connect them with various devices and machines. They can be used to connect industrial networks and communication equipment to connect them with various devices and machines， like Industrial Ethernet Cable.
| Male straight | Female straight | |||
| NO. | 908641 | 908651 | 908661 | 908671 |
| Suppression | 3pole | 4pole | 3pole | 4pole |
| Wire diagram | 0.14...0.5mm² | 0.14...0.5mm² | 0.14...0.5mm² | 0.14...0.5mm² |
| Technique data | ||||
| Supply voltage | 60V AC/DC | 30C AC/DC | 60V AC/DC | 30V AC/DC |
| Current per contact（40℃） | max.4A | |||
| Wiring method | Screw terminals | |||
| Protection |
IP67(EN 60529) When plugged and screwed down |
|||
| Temperature range | -25℃...+85℃ | |||
| Clamping range： Cable exit | 3.5mm...5.0mm | |||
