10 Position M8 Terminals Electric Junction Box
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Air, Express
- Port:
- Shanghai Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 10000PCS/Month |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001:2015 |
| Transportation: | Ocean,Air,Express |
| Port: | Shanghai Port |
SVLEC Plastic Waterproof 10 Position M8 Terminals Electric Junction Project Box
Product Description
M8/M12 splitter can provide an easier connection of field components and clear wiring. In addition to the M8/M12 thread full plastic dispenser, we also offer 7/8" dispensers. Main cable connection can be based on needs to choose ascrew connection or convenient direct connection.

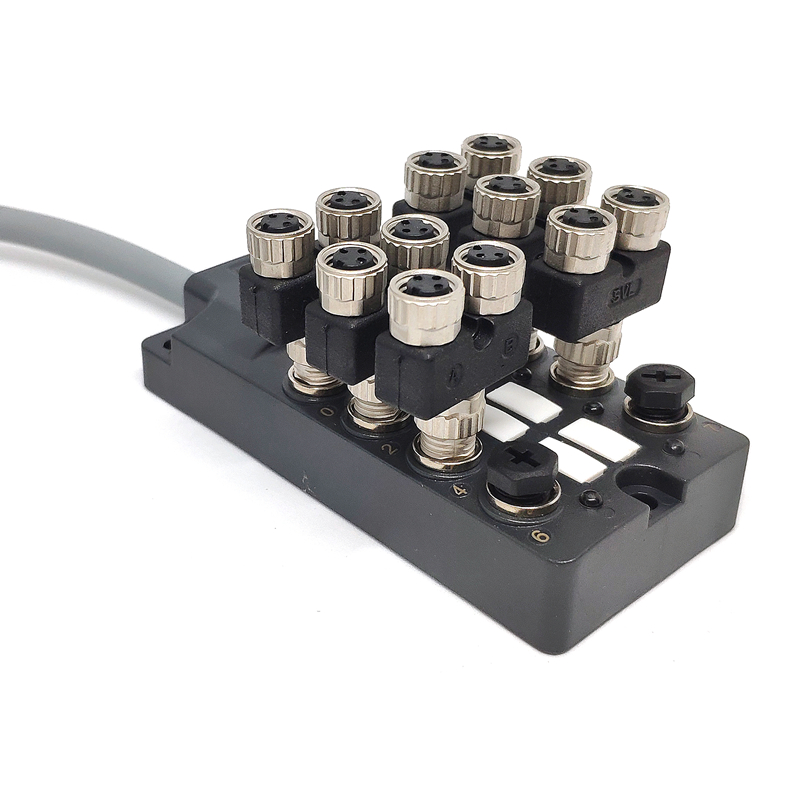

Use Y - type distributor to double the junction box socket. Thus, the wiring time and workload can be saved and the field signal distribution can be simplified.
|
PART NAME：
|
Distribution box
|
Port :
|
10 ways
|
|
VOLTAGE：
|
24V DC
|
CURRENT:
|
2A
|
|
Entry port
|
M12
|
PROTECT DEGREE:
|
IP67
|
Kunshan SVL Electric co., LTD., located in German industrial zone, kunshan city, jiangsu province, with a workshop area of 3000 square meters.We are innovative Scientific and technological enterprise integrating R&D, production and sales.
SVLEC can provide automatic components such as connectors and wiring harness, heavy-duty connectors, servo wiring harness, panel interface, valve plug, cable entry system, magnetic switch, pressure switch, industrial LED lighting, bus module, etc.
SVLEC ‘s high-quality, innovative products are strictly tested in the laboratory and long-term user integration. Our laboratory fully conforms to the IEC 61984 & IEC 17025 construction standards. Our products have passed CE, TUV, UL certification successively.
For OEM product, please inquire.
Transport Package:PE bag/Bubble bag→Carton→Pallet
Payment Item: T/T , 50% Deposit, 50% Balance Before Shipment.
1. Q: What is the necessary information needed for quotation?
A:The series(M8/M12/M23...),coding,male or female,pin number,cable length.
2. Q: What is the minimum order quantity(MOQ)?
A:100 pcs or negotiatable.
3. Q: What do the SVL certifications have?
A: ISO9001:2008,, CSA. CE
4. Q:What does SVL can provide for the product’ certification?
A: IP67, UL, CE and RoHS.
5. Q: Sample lead time?
A: 3-5 DAYS.
6. Q: Volume order lead time?
A: 1-2 weeks.
7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.
8. Q: How do you ship the finished product?
A: Based on the customer request.
9. Q: What kind of delivery terms or trade terms is available?
A: EXW, FOB, FCA HK, Telex releases are available.
