Hybrid Plug Circular M23 Female Connectors for Industry
- Transportation:
- Ocean, Air, Express
- Port:
- Shanghai Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 2000PCS/Month |
| Incoterm: | DDU,Express Delivery |
| Certificate: | ISO9001:2015 |
| HS Code: | 853630 |
| Transportation: | Ocean,Air,Express |
| Port: | Shanghai Port |

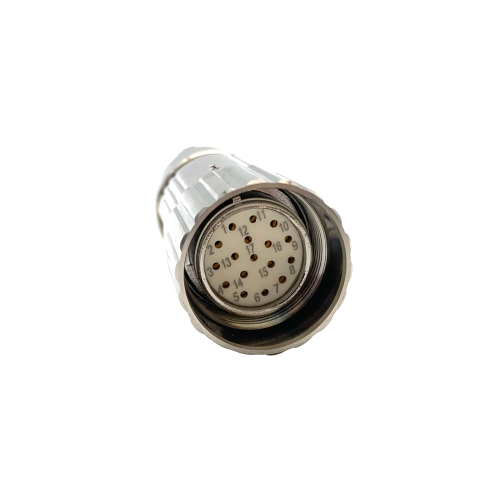

Circular M23 Female Connectors
Circular M23 connector series are commonly used in automation fields such as motors, encoders, and robots. The product function is mainly based on signal transmission and power connection. M23 signal Connector are suitable for power transmission in motor drive applications. During installation, crimped connectors are used in the M23 power connector to ensure the most reliable connection performance, while reducing installation time and saving costs. In addition, our connectors have a full 360-degree connection to the cable shield to provide excellent EMC performance.
Name:
IP67 M23 connector
Pole:
17
Gender:
Female
Voltage:
160 V AC/DC
Current:
8A
Protection:
IP67
Test voltage:
2500v
Housing material:
Zinc alloy die casting brass, nickel plating
Insulation embedded body material:
PA66/PBT, UL94/V0
Temperature:
-20...+130℃
