Shielded Metal 5Pin A Coded M12 Circular Connector
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Land, Air, Express, Ocean
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Transportation: | Land,Air,Express,Ocean |
| Port: | Shanghai |

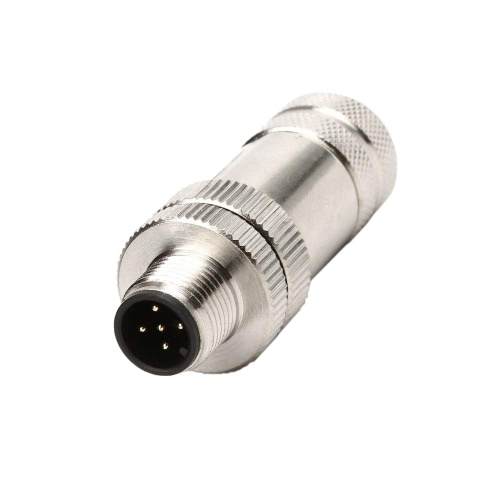

Shielded Metal 5Pin A Coded M12 Circular Connector
Field M12 series connectors, it applies to Data Communication and I/O connection on-site installation.
Widely used in data transmission, micro-electrical transmission.
Product Specifications
Clamping range(cable exit): 3.5-8.0mm
Single core crimp: 0.14-0.75mm²
Wiring method: Max 0.75mm
Core diameter: 22AWG / 0.34mm Rated voltage: 125V
Current per contact ( 40 °C ): Max 4A
Temperature range ( Insulator / Wire ): -45 to 85°C / -20 to 80°C
Protection Class: IP67
Locking type: Screw terminals fix
Connector contacts: Brass with gold plated
Housing materal: Metal
Perfect for the application on automated terminal connection, process control, and commercial electronic, can be easily connected to proximity switches, photoelectric barriers, flow monitoring devices, sensor devices and ctuator devices and field bus components.
| Name: |
M12 shielded connector |
|
Coding: |
A-coding interface |
|
Contacts: |
5 pins layout |
|
Gender: |
Male |
|
Status: |
Shielding |
|
Type: |
180° Circular |
|
Flame Retardant Rating: |
UL94-HB |
|
Cable Gland/Outlet: |
PG7/PG9 |
|
Sealing: |
O-ring |
|
Contact resistance: |
≤3MΩ |
|
Insulation resistance: |
≥100MΩ |
