D-Code female Field-wireable M12 shielded plug connector
- Min. Order:
- 10 Bag/Bags
- Min. Order:
- 10 Bag/Bags
- Transportation:
- Ocean, Land, Air, Express
- Port:
- SHANGHAI, NINGBO, GUANGZHOU
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 2000PCS/Month |
| Supply Ability: | 10000 |
| Payment Type: | T/T,L/C,D/P,D/A,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW |
| Transportation: | Ocean,Land,Air,Express |
| Port: | SHANGHAI,NINGBO,GUANGZHOU |
Product Description
Product Description

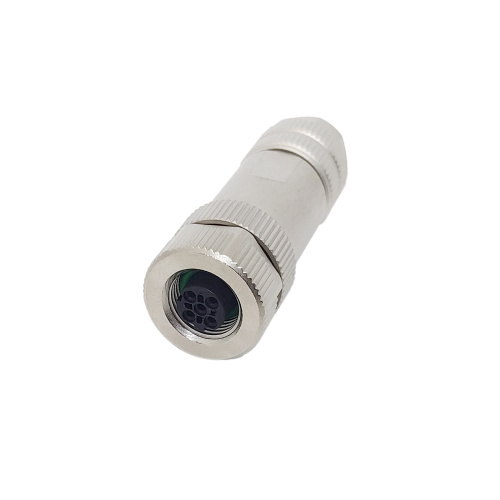

D-Code female Field-wireable M12 shielded plug connector
Sensor cable M12 connector, connection thread M12X1, straight pin, all-metal shielded type, 2-12 core, etc. Users can wire themselves on site, screw pressing, or welding, pre-installed cable diameter 2-4, 4-6, 6-8mm. Environmental protection material prefabrication method, protection performance IP67, products in line with ROHS standards.
| Name: |
M12 shielded connector |
| Pin out: | 4 pole |
| Gender: | Female |
| Voltage: | 125V AC/DC |
| Current: | max. 4A |
| Connection diameter: | max.0.75mm2 |
| Protection: | IP67 |
| Temperature range: | -25...+85℃ |
| Housing material: | CuZn, nickel plated |
| Wiring method: | screw terminals |
| Cable outlet diameter: | 4...6mm |
