Screw Terminals 5pin Metal M12 Shielded Plug Connector
- Min. Order:
- 10 Bag/Bags
- Min. Order:
- 10 Bag/Bags
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI, NINGBO, GUANGZHOU
Your message must be between 20 to 2000 characters
Contact Now| Productivity: | 2000PCS/Month |
|---|---|
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI,NINGBO,GUANGZHOU |

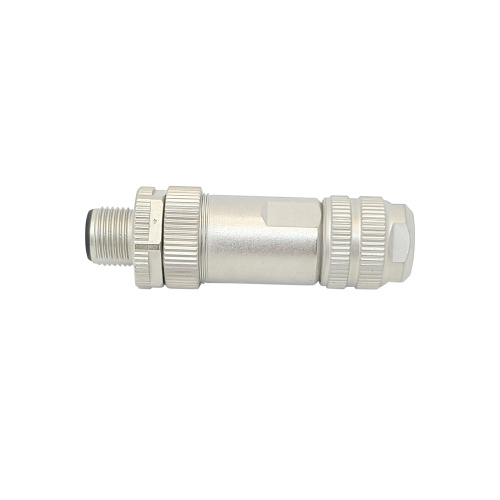

Screw Terminals 5pin Metal M12 Shielded Plug Connector
In factory automation and industrial machinery applications, M12 connector are considered to be one of the most reliable and efficient connection standards. This series of products is small in size, low in failure rate and high in performance, not only for sensor connection, but also for hybrid fieldbus systems. In industrial automation and control applications, these connectors provide a rugged, easy-to-use and very reliable solution for connecting sensors/actuators.
Name:
M12 shielded connector
Pin:
5
Gender:
Male
Voltage:
12V AC/DC
Current:
Max. 4A
Connection diameter:
Max. 0.75mm2
Housing material:
CuZn, nickel plated
Wiring method:
Srcew terminals
Protection:
IP67
Temperature:
-25...+85℃
