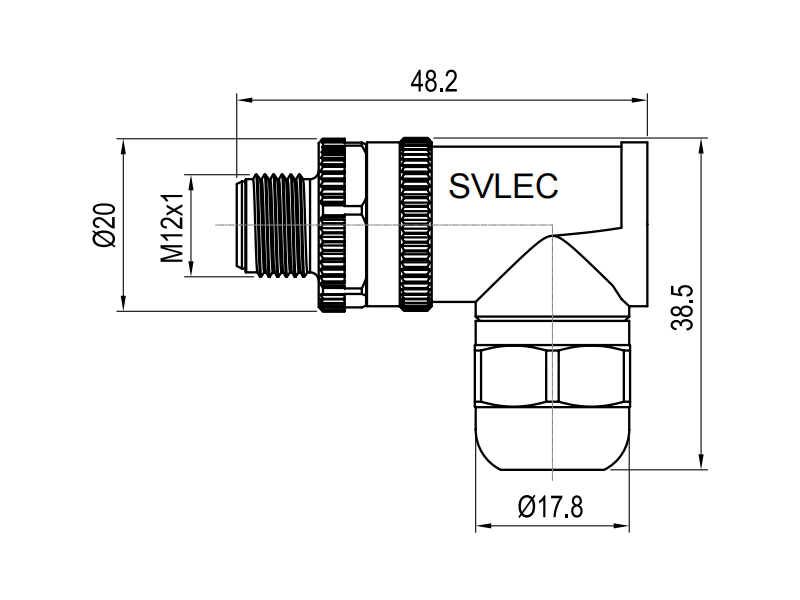

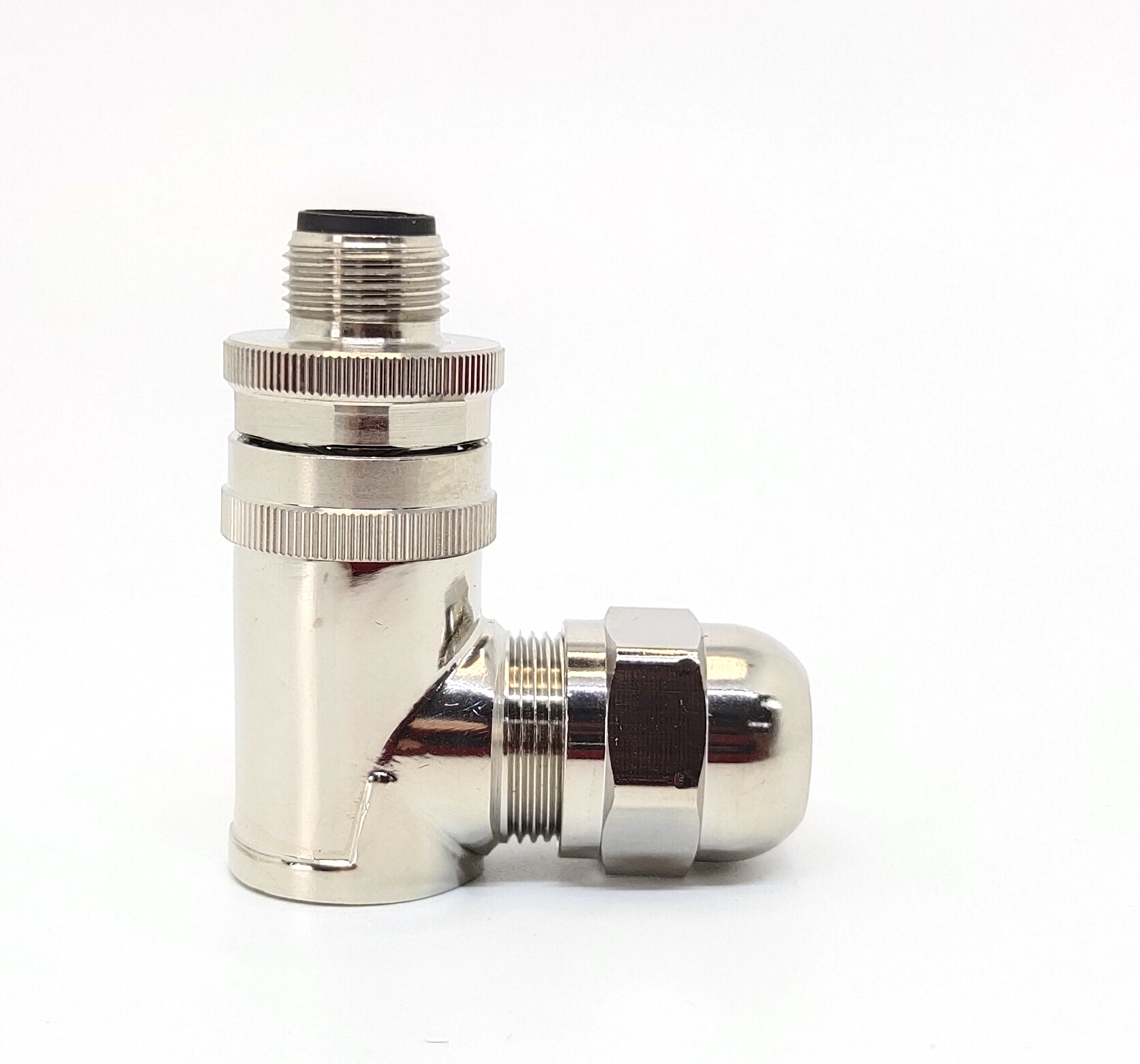

M12 5 Pin Right angle Male Connector
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI, NINGBO, GUANGZHOU
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Supply Ability: | 10000/MONTH |
| HS Code: | 8536300000 |
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI,NINGBO,GUANGZHOU |
Svlec is mainly dedicated to Connector, Round plug connectors ,like M8 connector, M12 connector, M23 connector, Y/T Connector and so on.5 Pin Right Angle M12 Shielded Male Connector shielding design: This connector has a shielding design, which can reduce interference and Electromagnetic interference, providing a more stable and reliable connection. Waterproof and dustproof: The connector is waterproof and dustproof, suitable for use in harsh environments, and can protect the connector from water and dust damage.5 Pin Right Angle M12 Shielded Male Connector can be used with cable identification accessories, M12 male blind plug(plastic), slip-on cable sleeves, snap-on cable sleeves, lable plates, M12 pre-cast wire, etc. We accept customized drawings, such as M12Y type straight out, 2M12 jack straight out.
| Name: |
M12 shielded connector |
| Pole: | 5-pole |
| Voltage: | 125 V AC/DC |
| Current: | max. 4A |
| Connection diameter: | max. 0.75mm2 |
| Housing material: | CuZn, nickel plated |
| Protection: | IP67 |
| Temperature: | -25...+85℃ |
