IP65 Shielded X-code Metal M12 Male Connector
- Transportation:
- Ocean, Air, Express
- Port:
- Shanghai Port
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Supply Ability: | 2000PCS/Month |
| Payment Type: | Western Union |
| Certificate: | ISO9001:2015 |
| Transportation: | Ocean,Air,Express |
| Port: | Shanghai Port |
Product Description
Product Description

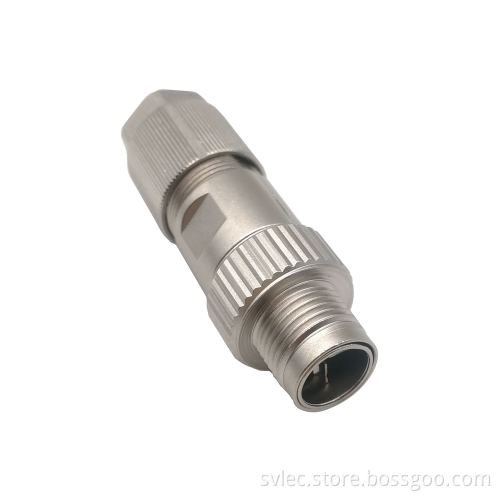

IP65 Shielded X-code Metal M12 Male Connector
The X-code all-metal 360° connector 8-pin M12 connector has a smaller shape and can achieve anti-loose connection. The plug connection nut and the shell are anti-loose through the corrugated structure. Faster transmission rate, M12 D-Code connector can transmit 100M Ethernet, M12 X-code connector can transmit Gigabit Ethernet and 10 Gigabit Ethernet, higher electromagnetic compatibility. The interface can be interchanged with the same type of M12 shielded connector from foreign manufacturers, and various components can be customized according to requirements.
| Name: |
X-code M12 Connector |
| Voltage: | 50V AC/DC |
| Connection diameter: | max. 0.75mm2 |
| Housing material: | CuZn, nickel plated |
| Wiring method: | Crimp terminal |
| Protection: | IP67 |
| Temperature: | -25...+85℃ |
