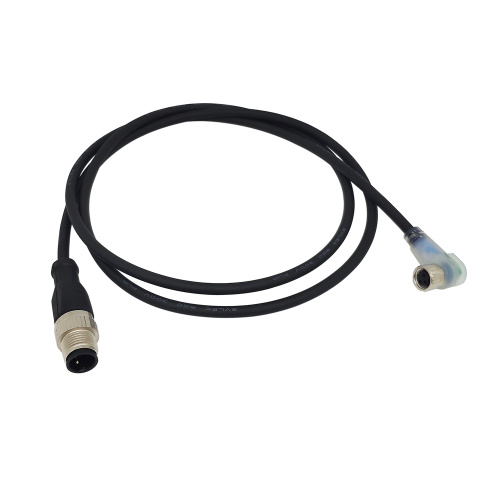

M12 to Right Angle M8 Cable with LED
M8 to M12 molded strip connector (plug) product, the M12 Male to M8 female Connector part and the cable have been injection molded together before leaving the factory. The commonly used wire material of our company is PUR or PVC outer jacket material cable, according to the terminal application requirements of the product. The core wire insulation materials we commonly use are PVC, SR-PVC, PP, and PE, and the circuit PIN position has 3 cores and 4 cores for option. The matching M12 panel mount Connector (socket) has welding electronic wire type and PCB board pin type, M12 board end welding type can weld electronic wire and resin potting package according to customer's reservation requirements.
1、Provide PUR or PVC shielded cables, and the length specifications of the wires can be customized
2、 Wire end (formed) can be customized wire length specification
3、Industrial protection class IP 67
4、3 cores and 4 cores are available
5、Anti-vibration loose design
Product application field
1、Sensors, actuators, encoders, motors
2、 Factory automation process control
3、 Packaging label printing equipment
4、Industrial equipment
5、EMS circuit board assembly
6、Industrial Safety Light Curtain
7、Device batteries, semiconductors
8、Marine electronics, rail transit
9、LED outdoor display screen, outdoor LED lighting
Name:
M12 To M8 Connector Cable
Pole:
3 pole
Jacket color:
Yellow, Orange, Grey, Black
Cable:
PVC, PUR
Cable length:
0.3/0.6/1/1.5/2m
