HEE 046 Crimp Terminal Heavy Duty Connector
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai |

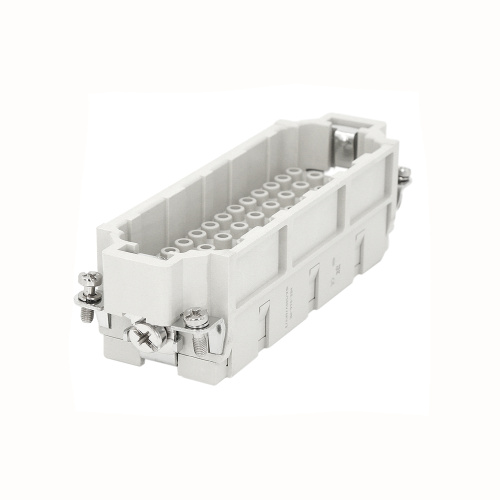

HEE 046 Crimp Terminal Heavy Duty Connector
Commonly known as the "industrial connector," this new interface is not limited to manufacturing. These connectors are designed to withstand the harshest industrial environments. Traditionally connected devices provide users with years of service warranty in a typical office environment. However, exposing the same copper cable or fiber optic connector to extreme conditions will degrade its performance and reliability, and the user will end up paying expensive maintenance fees to troubleshoot and replace components. A new connector designed specifically to build a rugged Ethernet connection in harsh environments that is tougher, stronger and more resistant than previous connectors.
Compared with the traditional connection method, the use of heavy duty connectors has the advantages of pre-installation, pre-wiring, prevention of mis-insertion, and improvement of work efficiency.
In addition to heavy-duty connectors, we have other industrial connectors, such as M12 Connector, M8 Connector.
|
Ferrule |
|
| Number of contacts: | 46 |
| Rated current: | 16A |
| Rated voltage: | 500V |
| Rated impulse voltage: | 6KV |
| Pollution degree: | 3 |
| Rated voltage acc to UL csa: | 600V |
| Material: | polycarbonate |
| Temperature: | -40℃...+125℃ |
| Flammability: | V0 |
|
Pluggable times |
>=500 |
| Pin | |
| Material: | Copper alloy |
| Surface: |
gold plated,silver plated |
|
Contact Resistance: |
≤1mΩ |
|
Wire Gauge: |
0.14-4.0mm2 |
|
AWG: |
26-12 |
|
Tightening Torque: |
7.5Nm |
