6 pin Harting heavy duty connector
- Transportation:
- Ocean, Air
- Port:
- Shanghai Port
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 5000PCS/Month |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ISO9001:2015 |
| Transportation: | Ocean,Air |
| Port: | Shanghai Port |
Product Description
Product Description

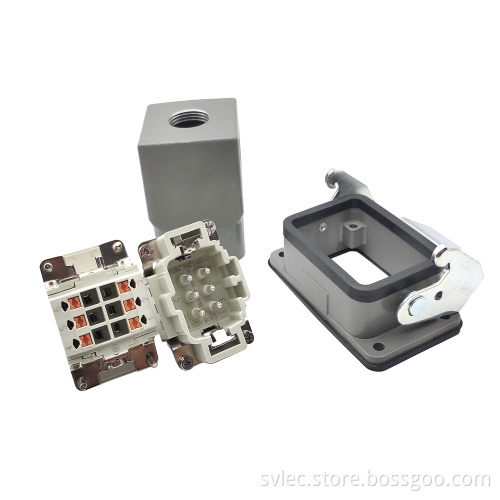

6 pin Harting heavy duty connector
The 6-pin HE Heavy Duty Connector adopts cast aluminum shell, which provides effective protection in harsh environments such as sand, ice and snow, rain, etc., and the seals connected by the upper shell and the lower shell are made of nitrile rubber anti-aging, oil pressure resistance, waterproof and dustproof, high and low temperature resistance to ensure normal use in harsh environments. The waterproof metal buckle adopts metal nickel-plated surface treatment to prevent the metal buckle from rusting, and the protection level reaches IP67 in the interlocking state.
| Name: |
heavy duty connector |
| Pin count: | 6 |
| Suit housing: | H6B |
| Current: | 16A |
| Voltage: | 500V |
| Protection: | IP67 |
| Wire gauge: | 0.5-4.0mm2 |
| Application: | Power |

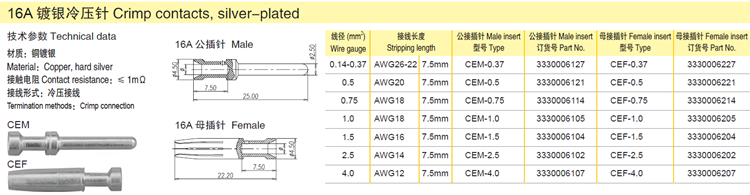

| Accessories Pin material: | silver plated copper |
