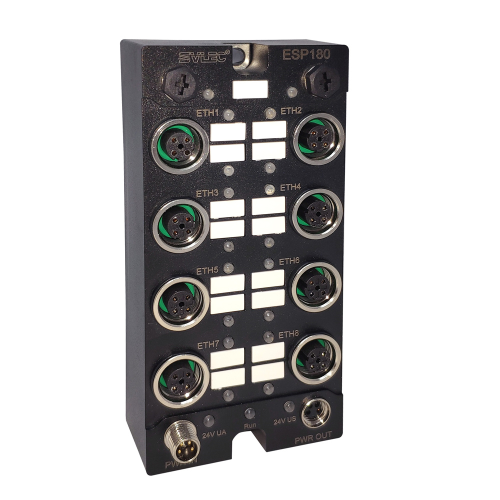

SVLEC Field application Ethernet switch
- Min. Order:
- 1 Carton
- Min. Order:
- 1 Carton
- Transportation:
- Ocean, Land, Air, Express
- Port:
- SHANGHAI, NINGBO, GUANGZHOU
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 20000 |
| Supply Ability: | 5000 |
| Payment Type: | L/C,D/P |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO9001:2015 |
| HS Code: | 851762 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | SHANGHAI,NINGBO,GUANGZHOU |
Product Description
The Ethernet switch equipment used in the field of industrial control. Due to the adopted network standard, it is open, widely used, and inexpensive. It uses the transparent and unified TCP / IP protocol. Ethernet has become the main industrial control field. Communication standards.
|
Product Name:
|
Ethernet switches
|
|
Type:
|
ESP180
|
|
Transmission:
|
EtherNet
|
|
Port number:
|
8 (M12 female)
|
|
Code:
|
D code
|
|
Transmit methods:
|
twisted pair
|
|
Transmit speed:
|
10 / 100 /MBit/s
|
|
Transmit distance:
|
100 m
|
|
Signal LED:
|
data connection/receving
|
|
Basical function:
|
Unmanaged / adaptivity,according to IEEE802.3 ,2 priority based on IEEE802.1P,PTCP filter
|
|
PROFINET consistency degree:
|
Conformance-Class A
|
|
Other function:
|
Autonegotiation
|
|
Status indicator:
|
LED : US,each port connection
|
|
Max cable length:
|
100 m
|
|
Power supply voltage:
|
24 V DC (M12 connector)
|
|
Power supply voltage range:
|
12 V DC...32 V DC
|
|
Current consumtion:
|
40 mA (US=24 V DC)
|
|
Max current consumtion:
|
40 mA ( +10 mA/port)
|
|
Size(L × W × H):
|
50×150×24.6 mm
|
|
Protection:
|
IP67
|
|
Temperature range(working):
|
-25..+ 60 °C
|
|
Humidity:
|
10……95%
|
|
Air pressure:
|
86 kPa ... 108 kPa (elevation 2000 m)
|
Our Company
Kunshan SVL Electric co., LTD., located in German industrial zone, kunshan city, jiangsu province, with a workshop area of 3000 square meters.We are innovative Scientific and technological enterprise integrating R&D, production and sales.
SVLEC can provide automatic components such as connectors and wiring harness, heavy-duty connectors, servo wiring harness, panel interface, valve plug, cable entry system, magnetic switch, pressure switch, industrial LED lighting, bus module, etc.SVLEC 's high-quality, innovative products are strictly tested in the laboratory and long-term user integration. Our laboratory fully conforms to the IEC 61984 & IEC 17025 construction standards. Our products have passed CE, TUV, UL certification successively.
SVLEC provide reliable products and high-quality and efficient services for customers in the energy industry, process industry, infrastructure, factory automation and other industrial fields.
Packing & Delivery
For product in stock, we will ship within 5-7 days.
For OEM product, please inquire.
Transport Package:PE bag→Carton→Pallet
Payment Item: T/T , 50% Deposit, 50% Balance Before Shipment.
Delivery Item: EXW, FOB Shanghai ,CIF, CFR via Express, Air plane, Ship
Certifications
FAQ
1. Q: What is the necessary information needed for quotation?
A:The series(M8/M12/M23...),coding,male or female,pin number,cable length.
2. Q: What is the minimum order quantity(MOQ)?
A:100 pcs or negotiatable.
3. Q: What do the SVL certifications have?
A: ISO9001:2008,, CSA. CE
4. Q:What does SVL can provide for the product' certification?
A: IP67, UL, CE and RoHS.
5. Q: Sample lead time?
A: 3-5 DAYS.
6. Q: Volume order lead time?
A: 1-2 weeks.
7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.
8. Q: How do you ship the finished product?
A: Based on the customer request.
9. Q: What kind of delivery terms or trade terms is available?
A: EXW, FOB, FCA HK, Telex releases are available.
