Product Description

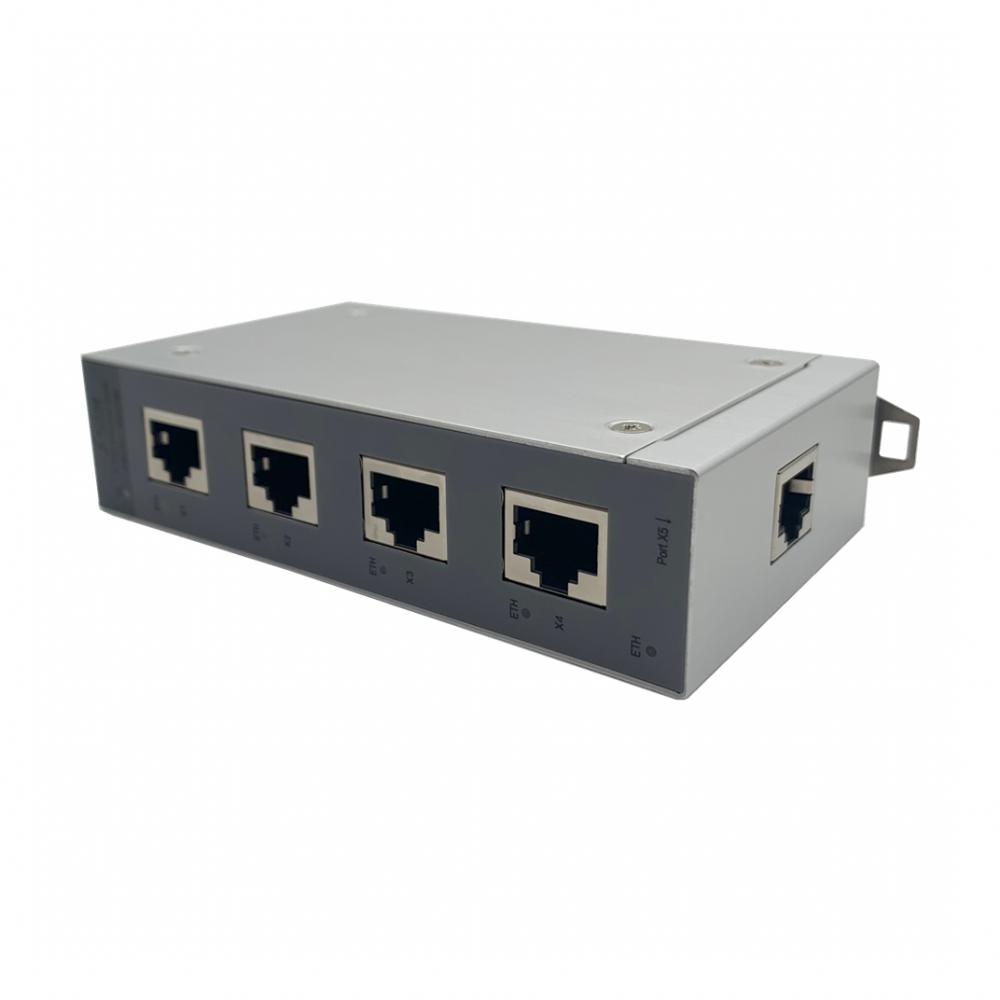

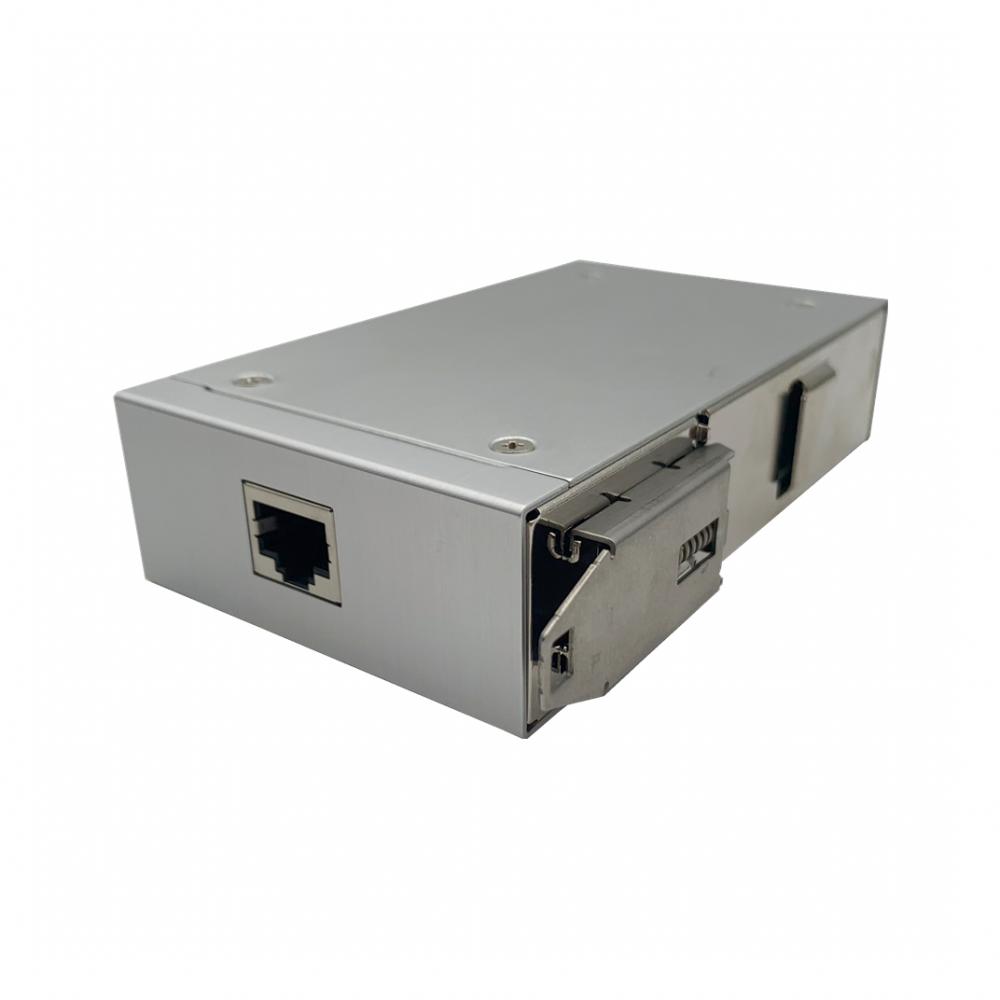

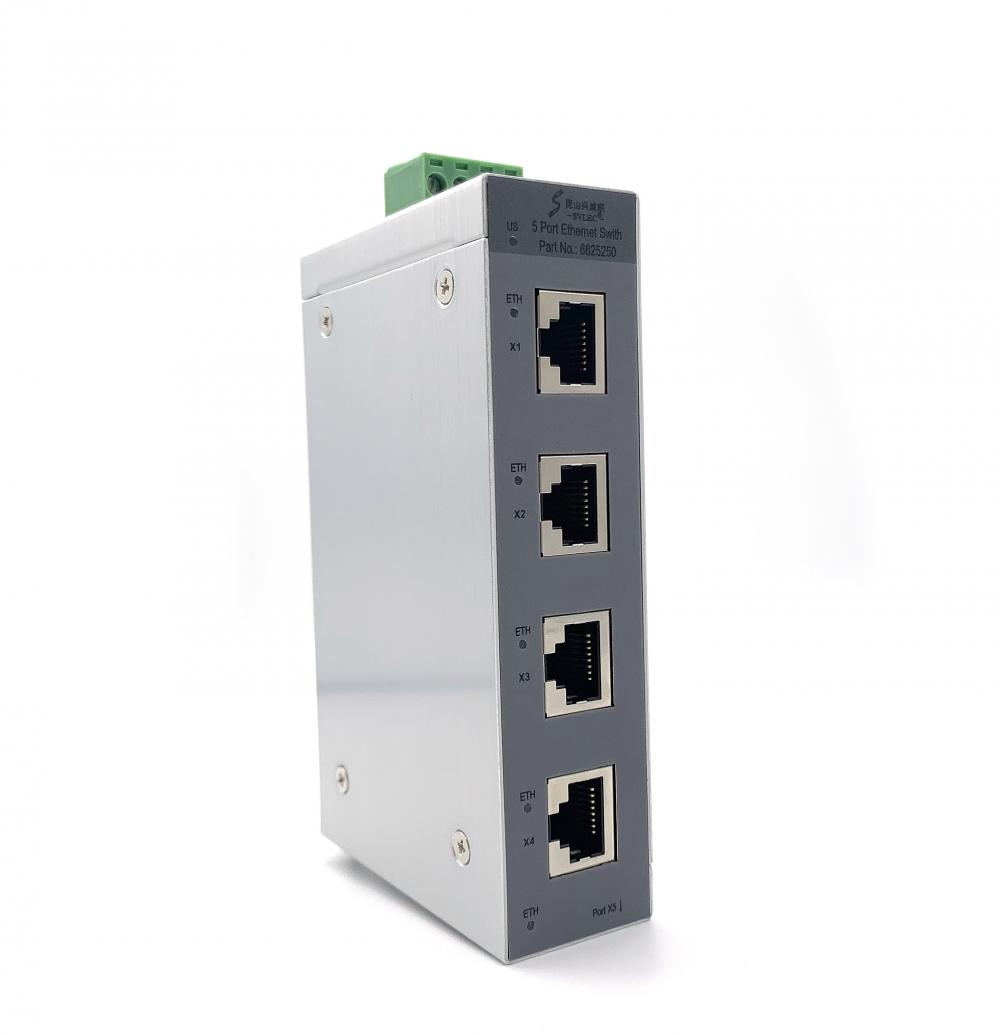

Industrial Ethernet switch

The Ehternet Switch equipment used in the field of industrial control. Due to the adopted network standard, it is open, widely

used, and inexpensive. It uses the transparent and unified TCP / IP protocol. Ethernet has become the main industrial control field. Communication standards.

Product Name:	Ethernet switches
Type:	EST250
Transmission：	EtherNet
Style：	5 Port Ethernet Switch
Port：	5 x RJ45 Spring force clamp
Connection method：	Adaptivity and and Self crossover
Transmit methods：	RJ45 network cable twisted pair
Transmit speed：	10 / 100Mbps Ethernet Switch
Basical function:	Unmanaged / adaptive / according to IEEE802.3/ Store and forward ）
Other function：	Autonegotiation
Status indicator：	LED: US，each port connector
Power supply voltage：	24 V DC
Residual wave：	3.6 VPP
Power supply voltage range：	18 V DC ... 57 V DC
Current consumtion：	140 mA (US=24 V DC)
Installation type：	DIN rail
Type AX：	Terminal design
Protection：	IP20
Housing：	Aluminum
Temperature range(working)：	-25 ... 60°C
Temperature range(stocking/shipping)：	-30 ...70°C
Fastener：	Buckle into the support rail TH35（EN60715）
Dimensions (length × width × height)：	70×28×110 mm
