Black Plastic Long Thread Cable Gland IP68
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1000PCS |
| Certificate: | CE |

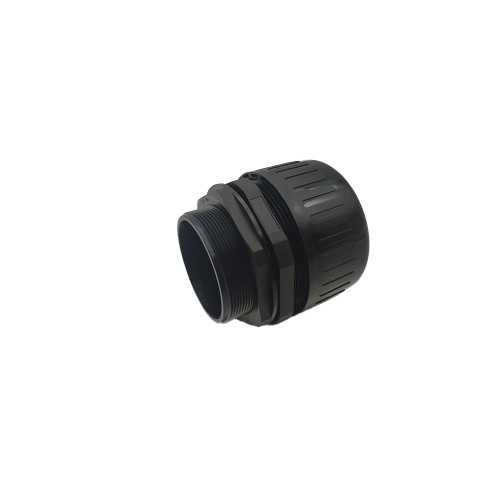

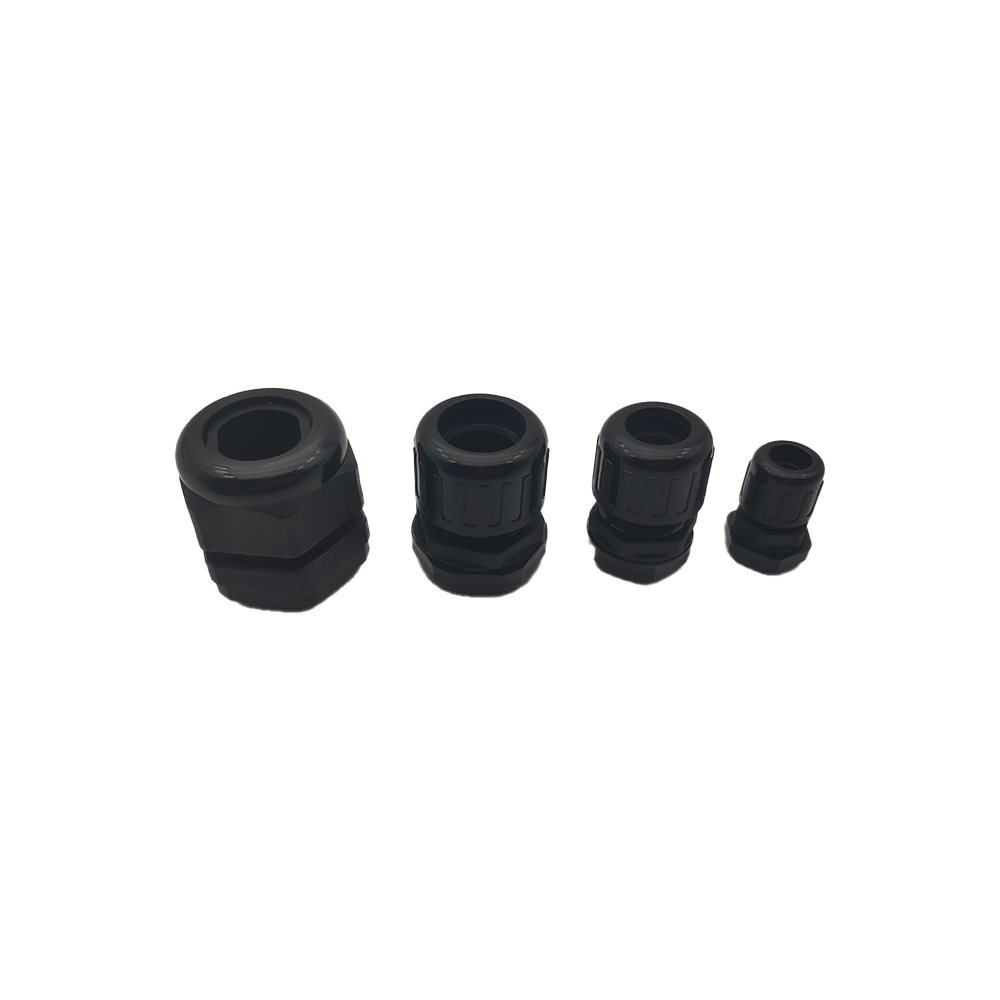

Long Thread Cable Glands is a Connector designed for connecting hoses, with high tensile strength and reliable sealing performance. This type of connector is widely used in various fluid transmission systems, especially in situations where high mechanical stability and tensile strength are required. Hoses of different lengths or materials can be connected to form a complete fluid transmission path. Due to its high tensile strength, it can effectively prevent the hose from falling off when used in high-pressure or vibration environments, reducing the risk of leakage.
The easy-to-disassemble design makes it more convenient when the hose needs to be inspected or replaced, reducing maintenance time and cost. Screw-in stretch hose connectors are widely used in industrial production, agricultural irrigation, construction and other fields due to their superior performance, and are of great significance to the safe operation of the system.please browse Cable glands and Accessories.
more details
| Designation | Suitable conduits | AG(MM) | AG(MM) | Type | NO. |
| PG7 | AD10.0 | 12.3 | 8 | QSP-7-PS | 63707101 |
| PG9 | AD13 | 15 | 10 | QSP-9-PS | 63709101 |
| PG11 | AG15.8 | 18.4 | 13 | QSP-11-PS | 63711101 |
| PG13.5 | AD18.5 | 20.3 | 14 | QSP-13-PS | 63703101 |
| PG16 | AD21.2 | 22.3 | 17 | QSP-16-PS | 63716101 |
| PG21 | AD28.5 | 28.0 | 22 | QSP-21-PS | 63721101 |
| PG29 | AD34.5 | 36.7 | 31 | QSP-29-PS | 63729101 |
| PG36 | AD42.5 | 46.7 | 37 | QSP-36-PS | 63736101 |
| M12*1.5 | AD10 | 12 | 8 | QSP-12-P | 63712101 |
| M16*1.5 | AD15.8 | 16 | 10 | QSP-16-P | 63716101 |
| M20*1.5 | AD18.5 | 20 | 15 | QSP-20-PT | 63720101 |
| M20*1.5 | AD21 | 20 | 15 | QSP-20-P | 63720102 |
| M25*1.5 | AD21.2 | 25 | 20 | QSP-25-PT | 63725102 |
| M25*1.5 | AD25 | 25 | 20 | QSP-25-P | 63725112 |
| M25*1.5 | AD28.5 | 25 | 20 | QSP-32-PT | 63732112 |
| M32*1.5 | AD28.5 | 32 | 26 | QSP-32-P | 63732102 |
| M30*1.5 | AD34.5 | 32 | 26 | QSP-40-PT | 63740112 |
| M40*1.5 | AD42.5 | 40 | 34 | QSP-40-P | 63710102 |
| M40*1.5 | AD54.5 | 50 | 44 | QSP-50-P | 63750102 |
