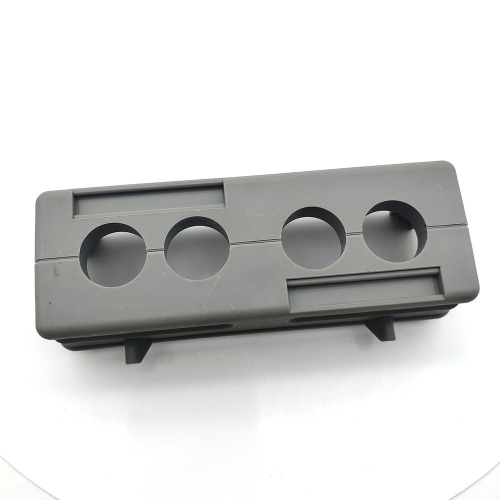

KD/SG-24/4 KDL cable entry system cable entry plate
- Min. Order:
- 5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 1000pcs |
| Certificate: | CE |
Svlec is a company specializing in the automation industry that integrates factory and sales. We sell various models of Cable entry system, including KDL, KDP, KEL, KML, RS, RM, etc. With the KDL Cable Entry Frame, prefabricated plugs can be easily introduced into the control cabinet without cutting the cable. The operation is simple and convenient. Customers can choose the appropriate frame and appropriate sealing ring according to the opening size or wire diameter. In addition,Connectors, Connection Cable, Industrial Ethernet Cable, etc. are also our products. Our Heavy Duty Connector, Cable Glands, etc. are also hot-selling products in the automation industry. These can be found in our product catalogue. Or you can click on our official website homepage to search for keywords. If you want to know more details about our Cable entry plate, you can also contact our sales. Don't worry about tedious installation, we provide detailed KDL installation methods. Show the installation steps in pictures.
Type
NO.
Color
NO. of opening small/large
A mm
B mm
Installation height
a mm
b mm
c mm
d mm
e mm
KDL 16/4
97171012
Black
4/-
116.0
58.0
10.0
86.0
36.0
51.5
16.0
5.5
KDL 24/3
97171014
Black
1/2
146.0
58.0
10.0
112.0
36.0
65.0
16.0
5.5
KDL 24/5
97171016
Black
5/-
146.0
58.0
10.0
112.0
36.0
65.0
16.0
5.5
KDL 2/10
97171017
Black
10/-
146.0
90.0
10.0
112.0
55.0
65.0
32.0
5.5
KDL 3/15
97171018
Black
15/-
146.0
122.0
10.0
112.0
96.0
65.0
48.0
5.5
Type
NO.
Suitable for
Color
A mm
B mm
C mm
E mm
F mm
G mm
I mm
K mm
H24B-AG
2300240301
KD/SG-24/4
Grey
140
44
103
155
55
27
32
4.5
Type
NO.
Color
NO. of opening small/large
Suitable for
A mm
B mm
KD/SG-24/4
97171034
Grey
4/-
KD/AG-24H
120
43
KDT/Z Cable entry goverment
Type
NO.
Color
For Ø mm
For small entry
KDT/Z 03
97171212
Black
3-4
⚫/-
KDT/Z 04
97171214
Black
4-5
⚫/-
KDT/Z 05
97171216
Black
5-6
⚫/-
KDT/Z 06
97171218
Black
6-7
⚫/-
KDT/Z 07
97171220
Black
7-8
⚫/-
KDT/Z 08
97171222
Black
8-9
⚫/-
KDT/Z 09
97171224
Black
9-10
⚫/-
KDT/Z 10
97171226
Black
10-11
⚫/-
KDT/Z 11
97171228
Black
11-12
⚫/-
KDT/Z 12
97171230
Black
12-13
⚫/-
KDT/Z 13
97171232
Black
13-14
⚫/-
KDT/Z 14
97171234
Black
14-15
⚫/-
KDT/Z 15
97171236
Black
15-16
⚫/-
Type
NO.
Color
For Ø mm
For large entry
KDT/Z 16
97171212
Black
16-17
-⚫/
KDT/Z 17
97171214
Black
17-18
-⚫/
KDT/Z 18
97171216
Black
18-19
-⚫/
KDT/Z 19
97171218
Black
19-20
-⚫/
KDT/Z 20
97171220
Black
20-21
-⚫/
KDT/Z 21
97171222
Black
21-22
-⚫/
KDT/Z 22
97171224
Black
22-23
-⚫/
KDT/Z 23
97171226
Black
23-24
-⚫/
KDT/Z 24
97171228
Black
24-25
-⚫/
KDT/Z 25
97171230
Black
25-26
-⚫/
KDT/Z 26
97171232
Black
26-27
-⚫/
KDT/Z 27
97171234
Black
27-28
-⚫/
KDT/Z 28
97171236
Black
28-29
-⚫/
Dummy grommet
Type
NO.
Color
For small /large entry
BTK-B
97171210
Black
⚫/-
BTK-A
97171410
Black
-⚫/
