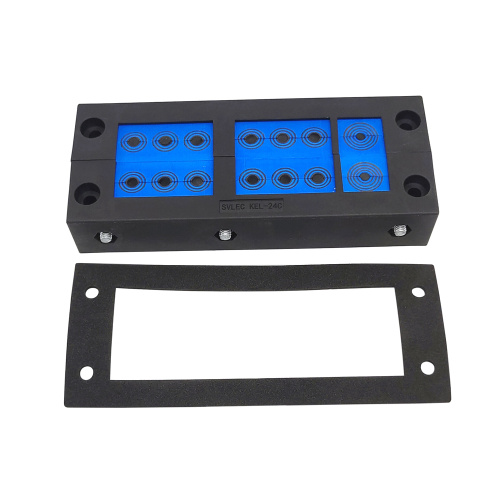

Waterproof Multi Hole Split Cat6 Cable Entry Frame
KEL is a segmented and divisible cable entry system for routing and sealing cables with connectors, providing IP54 / UL 12 rated protection.
KT grommets adapted to the cable diameter wrap around the cable and are inserted into the cable frame. Separable cable frame KEL exactly matches the cutout size of 10-pin, 16-pin and 24-pin standard heavy duty connector
Frame sizes based on KEL 16 and KEL 24, also available in extended version with additional intermediate frame. Thus, a quick, easy and cost-effective routing solution for up to 120 cables or hoses is possible.
Detachable Cable Entry Frame Features:
The quality of terminated cable assemblies continues
System upgrade and maintenance become simple and fast
High installation density, wide range of frame and grommet models to choose from
Cable stress relief according to EN 62444
High stability, shockproof
save space
When using two-hole or four-hole grommets, the installation density can be greatly increased
| Name: | KEL 24/14C Cable Entry Frame |
| Material: | halogen-free, silicone-free PA66 |
| Color: | Black |
| Protection degree: | IP65 |
| Temperature: | -40℃ to +120℃ |
| Flame class: | Flammability acc. to UL94 V0 |
| Suitable for situations: | Electric control cabinet, communication, machine tool control cabinet and so on |
