KDP 11 holes cable entry plate
Product Description

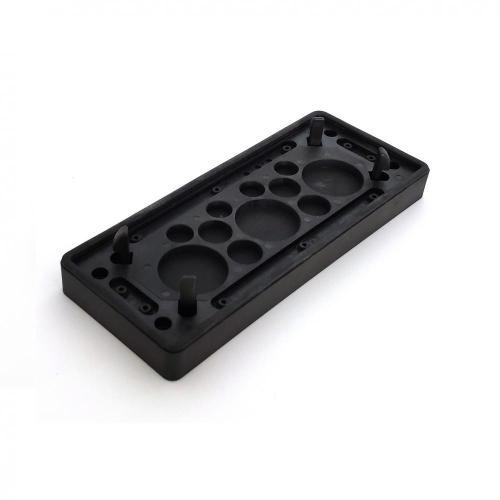

SVLEC plastic KDP/N 24 series cable entry plate is simply clicked into the cut-outs for 24-pole connectors and the cable is then pushed through - and the cable insertion is already done!
The cable entry plate is an entry and fastening system for electric conduits and pneumatic hoses such as those used in control cabinet, plant or machine construction. Wherever quick assembly, cable-protecting and high packing density are required, the cable insertion system is used.
Product Name:
Cable entry system
Frame material:
Halogen-free,silicone-free 66
Color:
Black
Temperature:
-30ºC to +70ºC
Protection level:
IP65
Flame class:
UL94--V0
KDP24 Dimension:
147*59*15mm
Clamping range:
Opening quantity:
11 holes
Strain relief :
DIN/EN 50262/98
Future:
Weak acids and bases resistance
Company Profile
SVLEC can provide automatic components such as connectors and wiring harness, heavy-duty connectors, servo wiring harness, panel interface, valve plug, cable entry system, magnetic switch, pressure switch, industrial LED lighting, bus module, etc.
SVLEC ‘s high-quality, innovative products are strictly tested in the laboratory and long-term user integration. Our laboratory fully conforms to the IEC 61984 & IEC 17025 construction standards. Our products have passed CE, TUV, UL certification successively.
For product in stock, we will ship within 5-7 days.
For OEM product, please inquire.
Transport Package:PE bag/Bubble bag→Carton→Pallet
Payment Item: T/T , 50% Deposit, 50% Balance Before Shipment.
