KDP/N 24/11 Cable Entry Plate high protection class
- Min. Order:
- 10 Bag/Bags
- Min. Order:
- 10 Bag/Bags
- Transportation:
- Ocean, Land, Air, Express
- Port:
- SHANGHAI port, NINGBO, GUANGZHOU
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO 9001:2015 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | SHANGHAI port,NINGBO,GUANGZHOU |
SVLEC cable entry plate represents enormous savings potential, both during panel installation and feed-through of the cable
Product Description

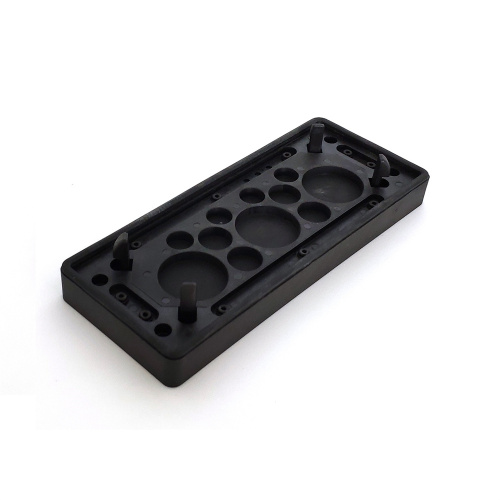

Take advantage of these huge potential savings. The plastic KDP/N 24 is simply clicked into the cut-outs for 24-pole connectors and the cable is then pushed through - and the cable insertion is already done!
The cable entry plate is an entry and fastening system for electric conduits and pneumatic hoses such as those used in control cabinet, plant or machine construction. Wherever quick assembly, cable-protecting and high packing density are required, the cable insertion system is used.
Product Name:
Cable entry system
Frame material:
Halogen-free,silicone-free 66
Color:
Black
Temperature:
-30ºC to +70ºC
Protection level:
IP65
Flame class:
UL94--V0
KDP24 Dimension:
147*59*15mm
Clamping range:
Opening quantity:
11holes
Strain relief :
DIN/EN 50262/98
Future:
Weak acids and bases resistance
Company Profile
SVLEC can provide automatic components such as connectors and wiring harness, heavy-duty connectors, servo wiring harness, panel interface, valve plug, cable entry system, magnetic switch, pressure switch, industrial LED lighting, bus module, etc.

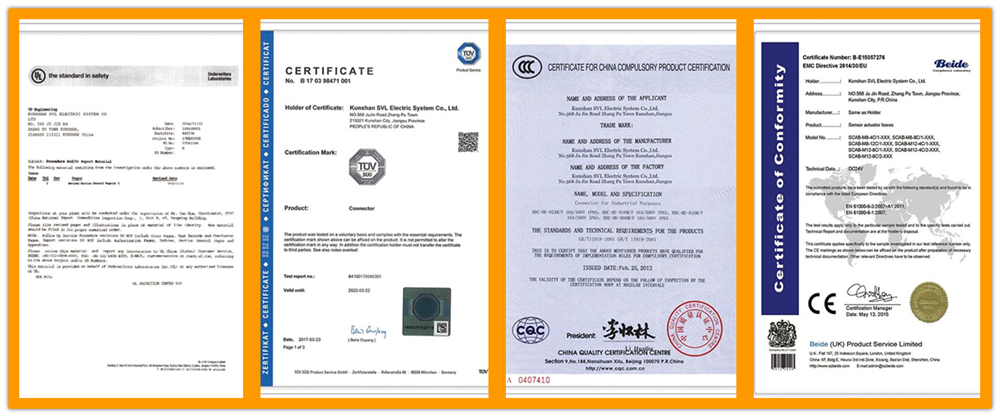

SVLEC ‘s high-quality, innovative products are strictly tested in the laboratory and long-term user integration. Our laboratory fully conforms to the IEC 61984 & IEC 17025 construction standards. Our products have passed CE, TUV, UL certification successively.
For product in stock, we will ship within 5-7 days.
For OEM product, please inquire.
Transport Package:PE bag/Bubble bag→Carton→Pallet
Payment Item: T/T , 50% Deposit, 50% Balance Before Shipment.
1. Q: What is the necessary information needed for quotation?
A:The series(M8/M12/M23...),coding,male or female,pin number,cable length.
2. Q: What is the minimum order quantity(MOQ)?
A:100 pcs or negotiatable.
3. Q: What do the SVL certifications have?
A: ISO9001:2008,, CSA. CE
4. Q:What does SVL can provide for the product’ certification?
A: IP67, UL, CE and RoHS.
5. Q: Sample lead time?
A: 3-5 DAYS.
6. Q: Volume order lead time?
A: 1-2 weeks.
7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.
8. Q: How do you ship the finished product?
A: Based on the customer request.
9. Q: What kind of delivery terms or trade terms is available?
A: EXW, FOB, FCA HK, Telex releases are available.
