Product Description
Product Description

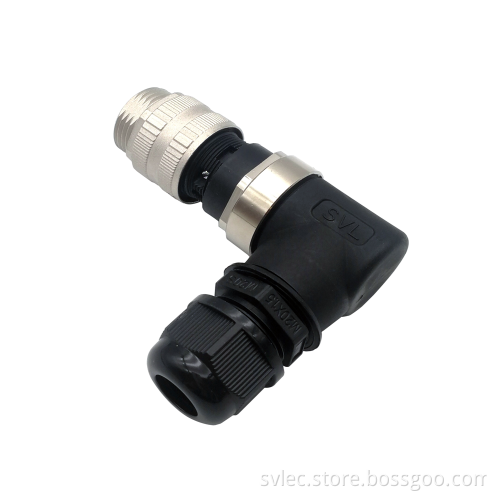

4-pin Mini Male Angled Fielded Wireable 7/8" Connector
The 7/8" connector is commonly known as the mini connector. Enhanced acid and alkali resistance, oil resistance, welding spark resistance, frequent torsion resistance. Mini Male Connector uses less wiring to make the equipment put into operation, and the process-related operation and function indication LEDs can realize fault diagnosis, reduce downtime and maintenance time, and the shielded connector has good anti-electromagnetic interference performance
| Name: |
Field Male 7/8” Connector |
| Gender: | Male |
| Pin out: | 4 pole |
| Application: | Power |
| Supply voltage: | 600 V AC/DC |
| Current: | max. 8A |
| Wiring method: | Screw terminals |
| Protection: | IP67 |
| Connection diameter: | 1.5mm2 |
| Temperature: | -25...+85℃ |
