Portable Ultrasonic Flow meter

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000000
Supply Ability:	2000000
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
HS Code:	9026100000
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

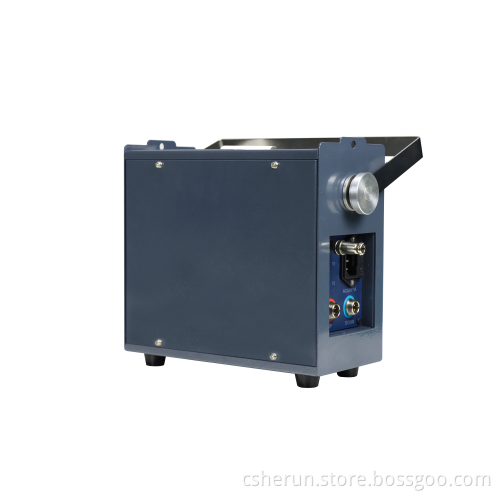

product name:Portable Ultrasonic Flow meter

QTDS-lOOP Portable Ultrasonic Flow meter/heat meter,is suitable for any industry application of fluid flow/heat online calibration and measurement.Good at easy operation,high accuracy,good consistency,online printing,longer battery powered time,heat measurement,and so on.Widely used in Petrochemical,Metallurgy,Electricity, Water supply,Water conservancy, Energy Monitoring,etc.

• Accuracy: Better than 1%;

• Repeat ab仆i t y : Better than 0.2%;

• Power: 220VAC(sta ndard),11OVAC(option aI);

• Measurement circle:SOOms(Twice per second,one circle collect 128 group data

• Display: Twolines displaying(instant flow,total flow,signal status,etc);

• Communication protocol:MODBUS protocol,FUJI extension protocol;

• Printing output: Built-in onebody thermal printer.(Can realize the real-time printing or fixed time printing);

• Data storage:Match with SD card data logger to store data of t ime,instantaneous flow,

total flow,signal status,etc.Can read the data on the computer(Can only choose one from data storage and printing);

• Heat Function:Match with PTlOO clamp platinum resistor can realize the heat measuring function;

• Other function :Self-diagnose ,indicate the working status is normal or not.

■ Sensor Parameter

Paramet er	Standard HS	Standard HM	St andar d 52	Standard M2	Standard L2
Measuringrange(mm)	1 5 - 10 0	50 - 70 0	1 5 - 10 0	50 - 700	300- 6000
Material	Aluminum alloy		Plastic alloy
Workingfrequency	1MHz
Installation way	V(N,W)	v,z	V(N,W)	v,z	z
Calibration	Wh o le set matching calibration
Magnetic	With
Temperature	O°C-160°C
Protection	IP65
Dimension(mm)	200x25x25	280x40x40	45x30x30	71x37x40	91x52x44
Weight(g)	250	1080	75	259	535
Fluid type	Water,Sea water,SewageA,lcoho,lVariousOil,Other sound wave conduction,single,unfoirm and stable liquid.
Fluid turbidity	乏 20000ppm and without much bubble
Suitablepipe material	Carbon st eel, St ainless steel,Cast iron,Copper,PVC,Aluminum,Glass fiber reinforced plastics and other Uniform density pipeline,Liner is perm it t ed.
Suitable pipe liner	Epoxy asphaIt, Rubber,Mortar,Polypropylene,Polystyrene, BakeIite,PTFE,etc.
Signal cable	St andard:Sm 2; 10M2 and 15M*2 is available.
