Fully stainless steel Capsule Gauge
- Payment Type:
- L/C
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 2000000 |
| Supply Ability: | 200000 |
| Payment Type: | L/C |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | CE |
| HS Code: | 9026800090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |
Product Description
Product Description
Model NO. CS02
Connection Type
Radial Direction
Function Local Indication Type
Installation Structure Direct Mounting
Features of Measurement Medium
General Pressure Gauge
Indicating Pressure Reference
General Pressure Gauge
Trademark CSHERUN
Transport Package Cartoon
Specification fully stainless steel
Origin China
HS Code 90268090

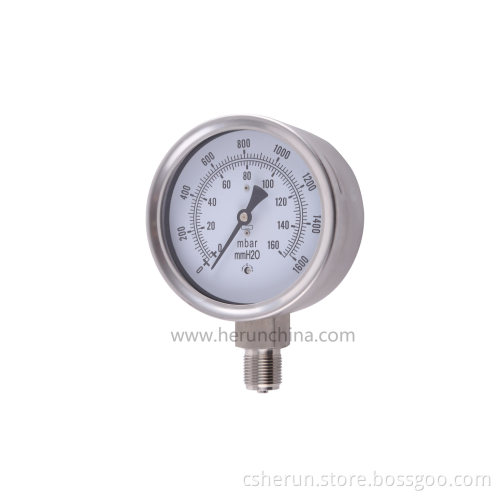

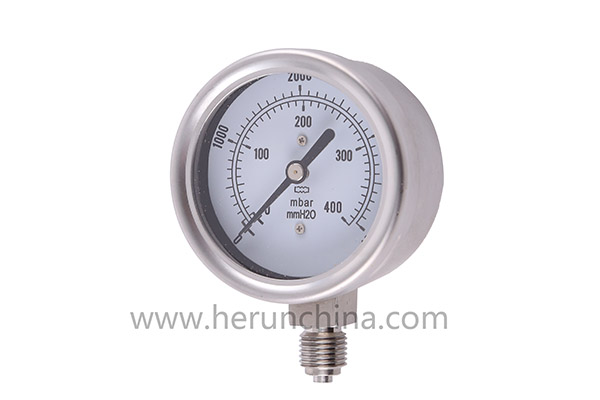

Capsule pressure gauge
Application EN837-3
With zero correction
Wetted parts and movement made of stainless steel
Technical data
Nominal size in mm
63, 100,160
Accuracy Class (according to EN837-1)
1.6
Measuring ranges
0 … 25mbar to 0 … 1000mbar
and all corresponding vacuum and compound ranges with overpressure protection
Application area
Steady: full scale value
Dynamic load: 0.9 X full scale value
Short term: 1.3 X fully scale value
Operating temperature range
Ambient: -20 …. +60ºC
Medium: +60ºC maximum
Temperature performance
When the temperature of the measuring system deviates from the reference temperature (+20ºC): max. ±0.6%/10k of the span
Degree of protection
IP32 (EN 60529)
Options
- Other process connection, the connection thread can be PT, NPT, BSPT etc.
- Reference pointer
- Back flange
- Window is plastic
- Special scales
- Panel mounting bezel
- Steel case
- 3-hole fixing, panel mounting bezel
- Other special versions
