High Precision Digital Pressure Gauge
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 200000 |
| Supply Ability: | 200000 |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| HS Code: | 9026800090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |
Product Description
Product Description
Model NO. CS601
Connection Type Radial Direction
Function Electric Signal-controlled
Installation Structure Direct Mounting
Features of Measurement Medium Corrosion Resistant
Indicating Pressure Reference General Pressure Gauge
Trademark CSHERUN
Transport Package Cartoon
Specification 0.5kg
Origin China
HS Code 90268090

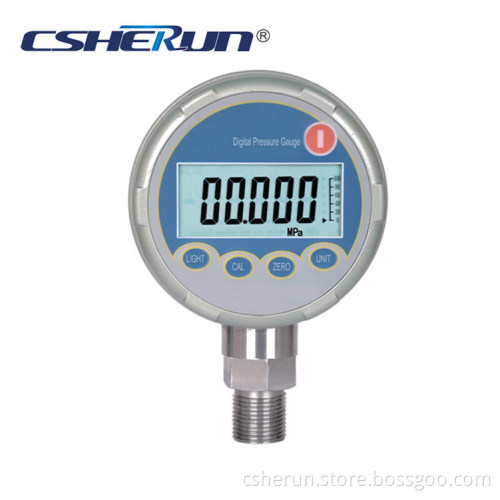

CS601 Digital pressure gauge adopts micro power components and unique software processing technology.
Adopting 1pcs disposable 3.6Vdc lithium battery, it could work 24 hours, continuously for at least one year.
With 5-digit large crystal screen, the data could be showed more clearly.
Every CS601 has passed the high and lower temperature aging thus to ensure more relialbe precision.
The product has been used in the industries of power, chemical, petrol, metallurgy, metering, etc.
Features
5 digit large LCD with backlight
Nine pressure units selectable
Zero point, full scale calibration function
Adopting the special software treatment technology, it is unnecessary to preheat
RS232 communication port can communicate with PC
Temperature compensating
Overload alarm function
% indication with bar graph scale for visual reference
Stainiless steel bottom connection for robustness
Equipped with rugged aluminum alloy cover
CE&EX approved
Specifications
Rang: -1...0 bar to 0...700bar
Accuracy: ±0.05%F.S, ±0.1%F.S, ±0.2%F.S, ±0.5%F.S
Units kPa, Pa, psi, bar, mbar,
Temperature compensating rang: -10 ... 50ºC
Display: 5 digits with 14mm character height
Connection: NPT, BSP, BSPT
Dimensions: 93mm X 41mm
Total Heitht: 134mm
Weight: 0.5kg CS601 DIGITAL PRESSURE GAUGE
CS601 Digital pressure gauge adopts micro power components and unique software processing technology.
Adopting 1pcs disposable 3.6Vdc lithium battery, it could work 24 hours, continuously for at least one year.
With 5-digit large crystal screen, the data could be showed more clearly.
Every CS601 has passed the high and lower temperature aging thus to ensure more relialbe precision.
The product has been used in the industries of power, chemical, petrol, metallurgy, metering, etc.
Features
5 digit large LCD with backlight
Nine pressure units selectable
Zero point, full scale calibration function
Adopting the special software treatment technology, it is unnecessary to preheat
RS232 communication port can communicate with PC
Temperature compensating
Overload alarm function
% indication with bar graph scale for visual reference
Stainiless steel bottom connection for robustness
Equipped with rugged aluminum alloy cover
CE&EX approved
Specifications
Rang: -1...0 bar to 0...700bar
Accuracy: ±0.05%F.S, ±0.1%F.S, ±0.2%F.S, ±0.5%F.S
Units kPa, Pa, psi, bar, mbar,
Temperature compensating rang: -10 ... 50ºC
Display: 5 digits with 14mm character height
Connection: NPT, BSP, BSPT
Dimensions: 93mm X 41mm
Total Heitht: 134mm
Weight: 0.5kg
