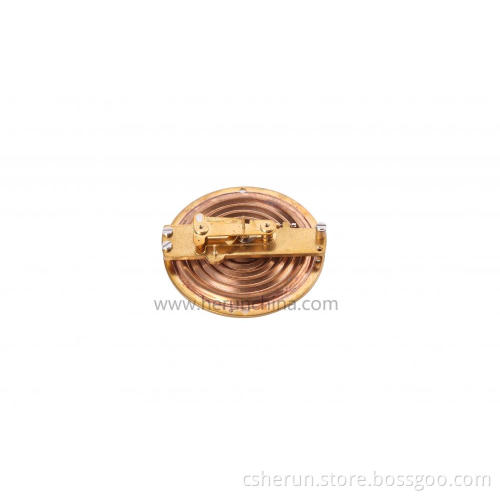

New Brass Capsule systems
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 100 Bag/Bags
- Min. Order:
- 100 Bag/Bags
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 60000000/Year |
| Supply Ability: | 60000000/Year |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | CE |
| HS Code: | 9026900090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |
CH45A
For NS50,63,80,100,150,160mm capsule pressure gauge
Capsule system
Models CA45A
For nominal size50,63,80，100mm pressure gauge
Measuring range 0...25 to 0...1000mbar
Accuracy class 1.0,1.6,2.5
Technical data
CH45A
Description:
Range: (mbar): 250~400mbar (Dia: 45mm)
100~160mbar (Dia: 56mm)
25/40/60mbar (Dia: 83mm）
Material: Beryllium-copper brass
External diameter size (mm): Φ45, Φ56, Φ45
Overall dimension of adopted product（"）: 2"; 21/2";3";4";6"
Diaphragm Displacement (mm): 1.1～1.4
Needle turning angle: 270°
Interface screw: M5
