Use Pressure Gauge Movement

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50, 000, 000PCS/Year
Supply Ability:	50, 000, 000PCS/Year
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
HS Code:	9026900090
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

Model NO. F5007

Connection Type Radial Direction

Function Local Indication Type

Installation Structure Direct Mounting

Features of Measurement Medium

General Pressure Gauge

Indicating Pressure Reference

General Pressure Gauge

Trademark CSHERUN

Transport Package Cartoon

Specification

Brass or SS304

Origin China

HS Code

9026900000

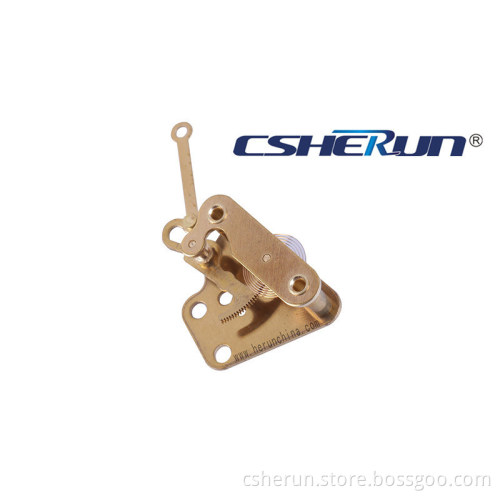

Standard pressure gauge movement
Models F5007

For nominal size 50,63mm pressure gauge
Measuring range -1...0 bar to 0...1000bar
For design per EN837-1
Accuracy class 1.0, 1.6, 2.5

Technical Data:

Transmission ratio: 10

Distance between centers: 15

Distace between holes: 9

Length of shaft extension: 4.7

Material: Brass, Stainless Steel, Stainless iron

We have more than 600 differents types of pressure gauge movement, the DS from 30mm to 250mm, the measure range from -1bar to 1000bar, the material can be stainless steel, brass, stainless iron, we are produce more than 60,000,000pcs of pressure gauge movement every year.
