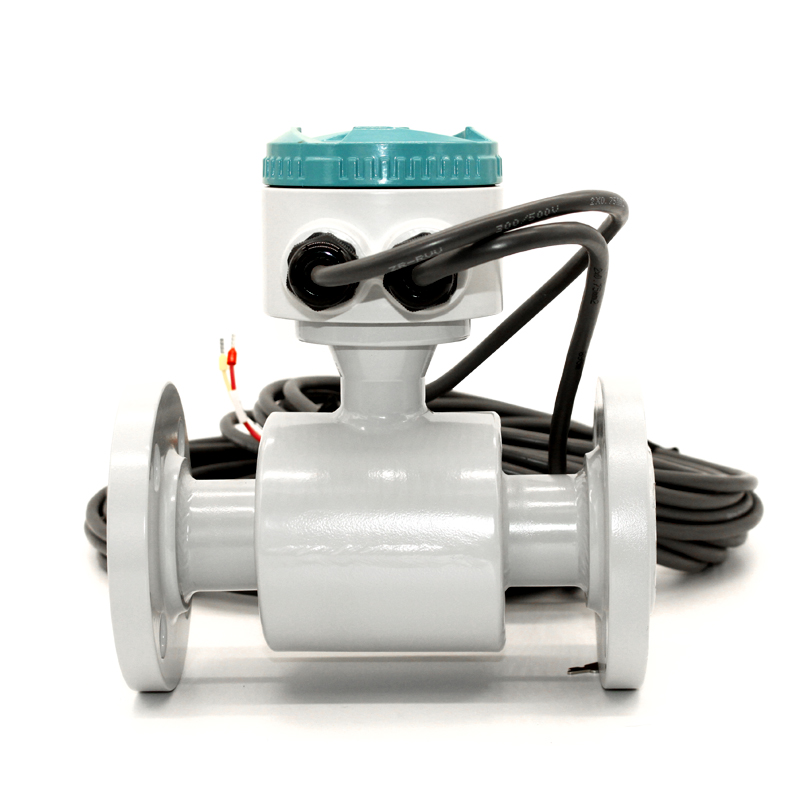

new Separate Electromagnetic Flow Meter 3
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000000 |
| Supply Ability: | 3000000 |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| HS Code: | 9026100000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |
product name:new Separate Electromagnetic Flow Meter 3
• Accuracy: 士 0 . 2 % of the measurement value +0.3m/s;
• Excellent small flow measurement accuracy,can measure duplex flow;
• Underground sensor{IP68) installed without building measuring well;
• Pipe connection:JIS 10K、JI S 20K、ANSI 150、ANSI 300、DI N PN10、DI N PN16;
• Cold,heat measure function;
• Double frequency excitation,stable zero point;
• Self-diagnosis ,intelligent work;
• Build-in ground electrode,no need the grounding ring
|
QTLD I |
|
XXX |
X |
X |
X |
X |
X |
X |
X |
X |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Caliber |
DN10-DN3000 3-digital code seeing caliber code table 13 |
|
||||||||
|
Nominal pressure |
0.6MPa |
1 |
||||||||
|
l.OMPa |
2 |
|||||||||
|
l.6MPa |
3 |
|||||||||
|
4.0MPa |
4 |
|||||||||
|
Other |
5 |
|||||||||
|
Connection mode |
Flange connection |
1 |
||||||||
|
Clamp connection |
2 |
|||||||||
|
Sanitary connection |
3 |
|||||||||
|
Liner material |
PTFE |
1 |
||||||||
|
PFA |
2 |
|||||||||
|
Neoprene |
3 |
|||||||||
|
Polyurethane |
4 |
|||||||||
|
Ceramic |
5 |
|||||||||
|
Electrode material |
316L |
1 |
||||||||
|
Hastelloy B |
2 |
|||||||||
|
Hastelloy C |
3 |
|||||||||
|
Titanium |
4 |
|||||||||
|
Pl atinum- i r i dium |
5 |
|||||||||
|
Tantalum |
6 |
|||||||||
|
Stainless steel covered with tungsten carbide |
7 |
|||||||||
|
Structure type |
I ntegral type |
1 |
||||||||
|
Remote type |
2 |
|||||||||
|
Remote type immerse |
3 |
|||||||||
|
Integral type Ex-proof |
4 |
|||||||||
|
Remote type Ex- pro of |
5 |
|||||||||
|
Power |
220VAC SOHz |
E |
||||||||
|
24VDC |
G |
|||||||||
|
Output/ ::ommunicatiat |
Flow volume4 - 20m AD C/pulse |
A |
||||||||
|
Flow volume4 ~ 20 m AD C/RS 232C communication |
B |
|||||||||
|
Flow volume4 - 20m AD C/RS48 5 communication |
C |
|||||||||
|
Flow volume HART output/with communication |
D |
|||||||||
|
Converter figure |
Square |
A |
||||||||
|
Circular |
B |
|||||||||
