Product Description
Product Description
Premould Termination

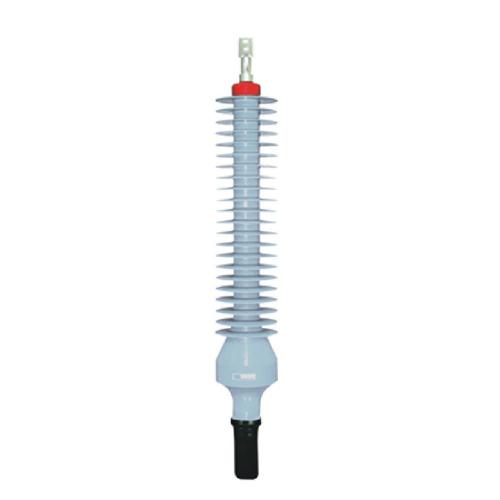

66-132kv dry type premold termination
Range to: 66-132kv AC cable accessories
Applied for: HV EHV project, such as substation, power plant, power transmission, nuclear power Advantage for: light weight, different installation direction
Product Type /Application Range
YJZWI4: Suit to IV grade pollution
Rated Voltage: 48/66kV, 56/77KV, Cable cross section:95-1600mm2
Rated Voltage: 64/110kV Cable cross section: 240-1600mm2
Rated Voltage: 76/132kV Cable cross section: 240-2500mm2
Product Characteristics
The product is preformed in the factory and adopts a seamlessmanufacturing process. It greatly increases the mechanical and electrical performance of thetermination.
Good weather resistant, anti-tracking, electrical corrosion and drain off water performance. Ensure the termination run in bad weather condition and high pollution zone safely.
Light weight,only 1/8-1/10 weight of porcelain type with same voltage easy to install.
No danger of explosion.
The termination is whole dry type, no oil. It can avoid oil leakage and other related accidents during running.It can be installed both vertically and horizontally. Easy to install and maintain.
