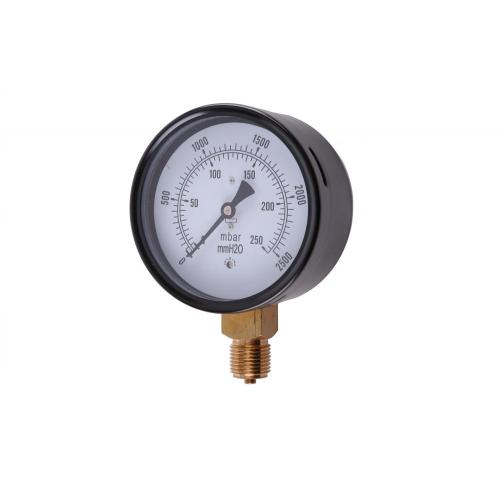

Capsule pressure gauge
Models CB01
Application
l EN837-3
l With zero correction
Technical data
Nominal size in mm
63, 100,160
Accuracy Class (according to EN837-1)
1.6
Measuring ranges
NS63,100: 0 … 25mbar to 0 … 1000mbar
NS160: 0 … 6mbar to 0 … 1000bar
And all corresponding vacuum and compound ranges with overpressure protection
Application area
Steady: full scale value
Dynamic load: 0.9 X full scale value
Short term: 1.3 X fully scale value
Operating temperature range
Ambient: -20 …. +60℃
Medium: +60℃ maximum
Temperature performance
When the temperature of the measuring system deviates from the reference temperature (+20℃): max.±0.4%/10k of the span
Degree of protection
NS63,160: IP33 (EN 60529)
NS100: IP54 (EN 60529)
Standard Version
Process connection
Copper alloy, bottom or centre back
NS 63 G1/4B -- SW14
NS 100,160 G1/2B – spanner size SW22
Pressure element
Capsule element, CuBe alloy
Movement
Copper alloy
Zero correction
From the front
Dial
Aluminium, white,
Dial marking black and red
Pointer
Aluminium, black
Case
Stainless Steel 304
Bayonet type bezel
Stainless steel 304
Window
Plastic
Options
Other process connection, the connection thread can be PT, NPT, BSPT etc.
Reference pointer
Back flange
Window is instrument glass
Special scales
Panel mounting bezel
Steel case
3-hole fixing, panel mounting bezel
Other special versions
