Pressure Gauge Special Used for Plastic Machine
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 3000000 |
| Supply Ability: | 3000000 |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | CE |
| HS Code: | 90268090000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |
Product Description
Product Description
Model NO.S. BC11
Computerized
Certification CE
Trademark CSHERUN
Transport Package Cartoon
Specification Brass connection with SS304 Case
Origin China
HS Code 90268090

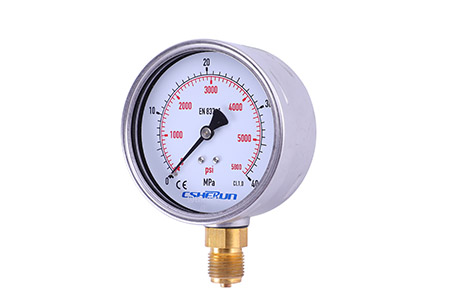

Liquid filling, bourdon tube pressure gauge, copper alloy Stainless steel case
Applications
For measuring points with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
Hydraulics
Compressors, shipbuilding
Special features Vibration and shock-resistant
Especially robust design Type approval for the shipbuilding industry
Scale ranges up to 0 ... 1,000 bar
CSHERUN Cyclic Pressure
Maximum scale value of pressure gauge (bar) ≤25 <25 to≤ 600 <600 to≤1000
Number of pressure cycles 120 000 100000 30000
Specifications
Design
EN 837-1
Nominal size in mm
50, 63, 100
Accuracy class
NS 50, 63: 1.6
NS 100: 1.0
Scale ranges
NS 50: 0 ... 1 to 0 ... 1,000 bar
NS 63, 100: 0 ... 0.6 to 0 ... 1,000 bar
Pressure limitation
NS 50, 63: Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value
NS 100: Steady: Full scale value
Fluctuating: 0.9 x full scale value
Short time: 1.3 x full scale value
Permissible temperature
Ambient: -20 … +60 °C
Medium: +60 °C maximum
Temperature effect
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span
Process connection
Copper alloy Lower mount or back mount
NS 50, 63: G ¼ B (male), SW 14
NS 100: G ½ B (male), SW 22
Pressure element
≤ 60 bar Copper alloy, C-type
>60bar Copper alloy, helical type
Movement
Copper alloy
Dial
Aluminium, white, black and red lettering
Liquid filling, bourdon tube pressure gauge, copper alloy Stainless steel case
Models S.BC11 NS50, 63, 100
CSHERUN Cyclic Pressure
Maximum scale value of pressure gauge (bar) ≤25 <25 to≤ 600 <600 to≤1000
Number of pressure cycles 120 000 100000 30000
Nominal size in mm
50, 63, 100
Scale ranges
NS 50: 0 ... 1 to 0 ... 1,000 bar
NS 63, 100: 0 ... 0.6 to 0 ... 1,000 bar
Pressure limitation
NS 50, 63: Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value
NS 100: Steady: Full scale value
Fluctuating: 0.9 x full scale value
Short time: 1.3 x full scale value
Permissible temperature
Ambient: -20 … +60 °C
Medium: +60 °C maximum
