Gas Filled Thermometers for Chemical Applications
- Payment Type:
- L/C
- Min. Order:
- 100 Bag/Bags
- Min. Order:
- 100 Bag/Bags
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Productivity: | 250, 000/Year |
|---|---|
| Supply Ability: | 250, 000/Year |
| Payment Type: | L/C |
Product Description
Product Description

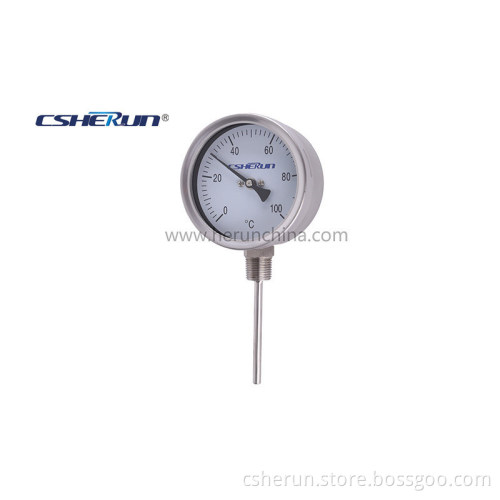

Model NO. BWT100
Trademark CSHERUN
Transport Package Catoon
Origin China
HS Code 90251910
Specifications Standard version
Every angle version
Other connection designs
Liquid filling
3-hole fixing, panel mounting bezel
Back flange
Specifications
| Nominal size: |
100, 160m |
| Measuring principle: | Pressurised gas filling |
| Accuracy class: | 1 (EN 13190) |
| Measuring ranges: | -20 … +600ºC |
| Application area |
Continuous: Full scale value Short-term: 1.1 X full scale value |
| Operating pressure at thermowell: | Max. 10bar(up to 300ºC) |
| Degree of protection: | IP65 (EN60529) |
Standard version
| Stem stainless: | steel 321, 100 X10mm, plain |
| Mounting position: | Centre back or bottom or with joint |
| Dial: | Aluminium |
| Movement: | Brass |
| Case: | Stainless steel 304 |
| Bayonet type bezel: | Stainless steel 304 |
| Window: | Instrument glass |
Options:
Every angle version
Other connection designs
Liquid filling
3-hole fixing, panel mounting bezel
Back flange
