Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | L/C |
Rated Voltage : 64/110kV, 76/132kV, Cable cross section: 240-1600mm2
Rated Voltage : 127/220kV Cable cross section: 240-3000mm2
Rated Voltage : 290/500kV Cable cross section: 800-3000mm2
Specification
The stress cone is made of imported EPDM. The surface pressure between the stress cone and the epoxy bushing is maintained by the spring device(stress cone bracket) so that the press of interface is kept permanently during the course of running. This structure can overcome the disadvantage or defect from material aging.
The termination is whole dry type , no oil, eliminate the problem of leakage.
Compact, light, weight, and small volume , Easy to install.

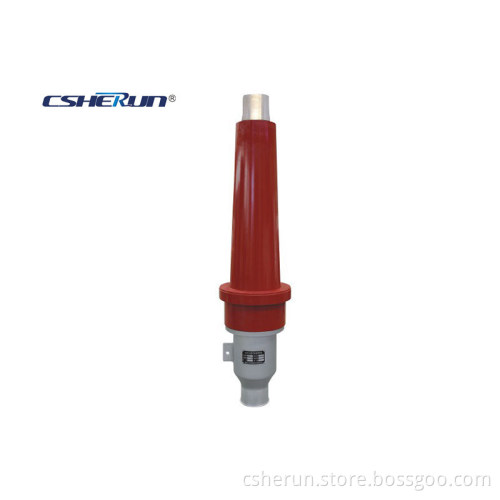

GIS Termination(Asembly)
Models
YJZGG (Indoor)Rated Voltage : 48/66kV, 56/77kV, Cable cross section: 95 - 800mm2
Rated Voltage : 64/110kV, 76/132kV, Cable cross section: 240-1600mm2
Rated Voltage : 127/220kV Cable cross section: 240-3000mm2
Rated Voltage : 290/500kV Cable cross section: 800-3000mm2
Specification
The stress cone is made of imported EPDM. The surface pressure between the stress cone and the epoxy bushing is maintained by the spring device(stress cone bracket) so that the press of interface is kept permanently during the course of running. This structure can overcome the disadvantage or defect from material aging.
The termination is whole dry type , no oil, eliminate the problem of leakage.
Compact, light, weight, and small volume , Easy to install.
